Smart Door Lock

XSL-300

  • Designed for wooden doors with premium aluminum alloy build

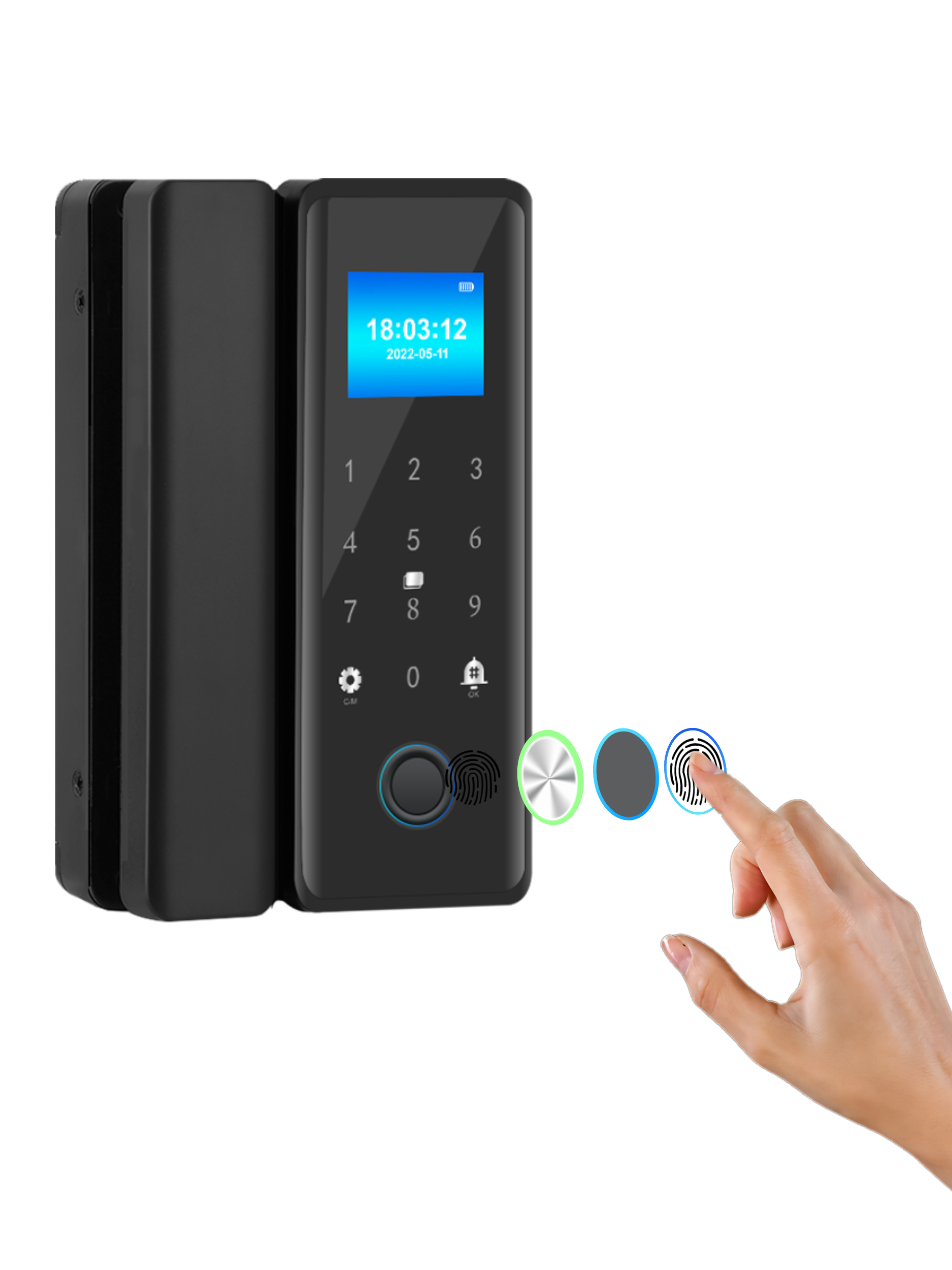

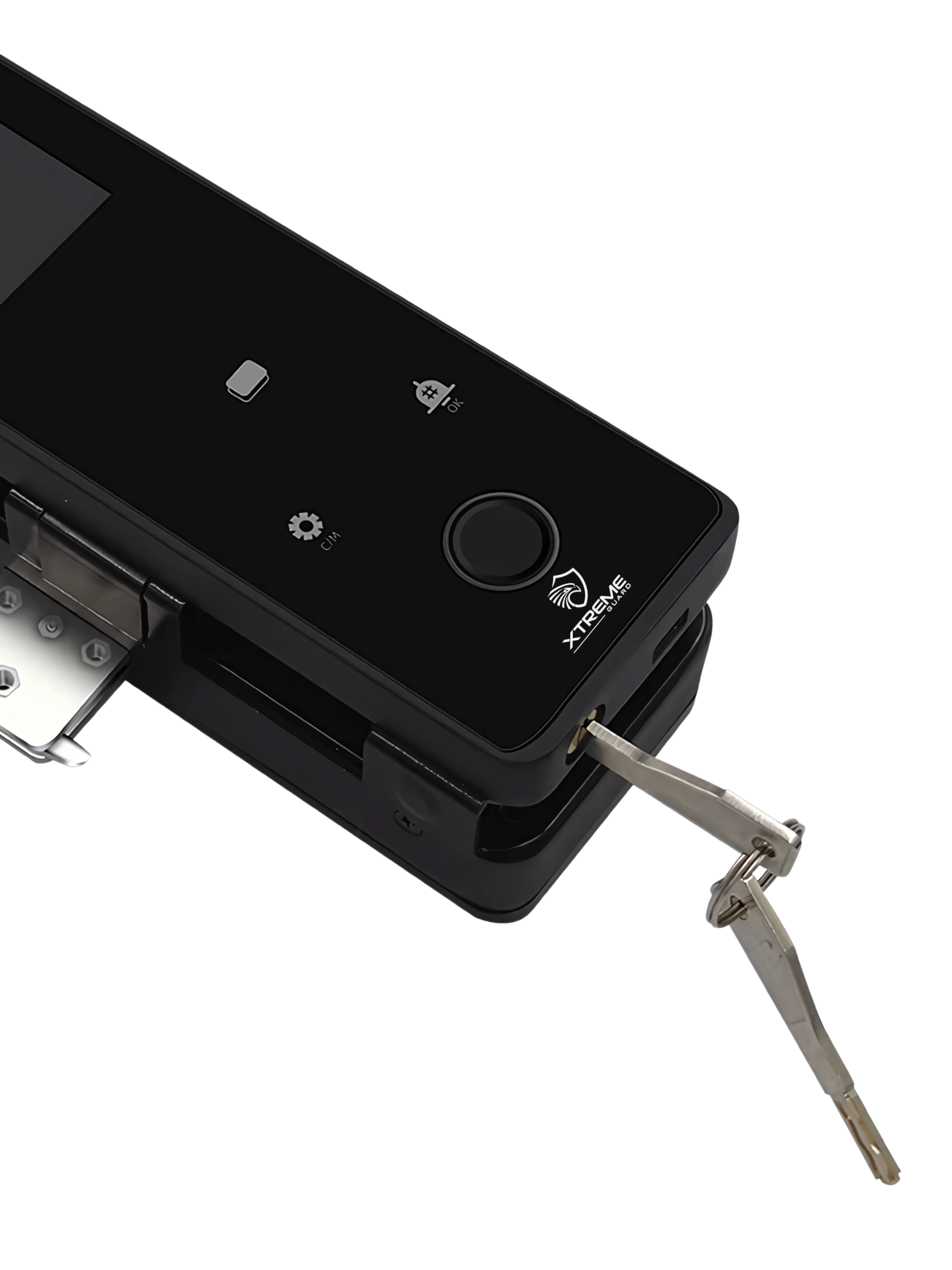

  • Multiple unlock methods: face, fingerprint, RFID, password, app, mechanical key

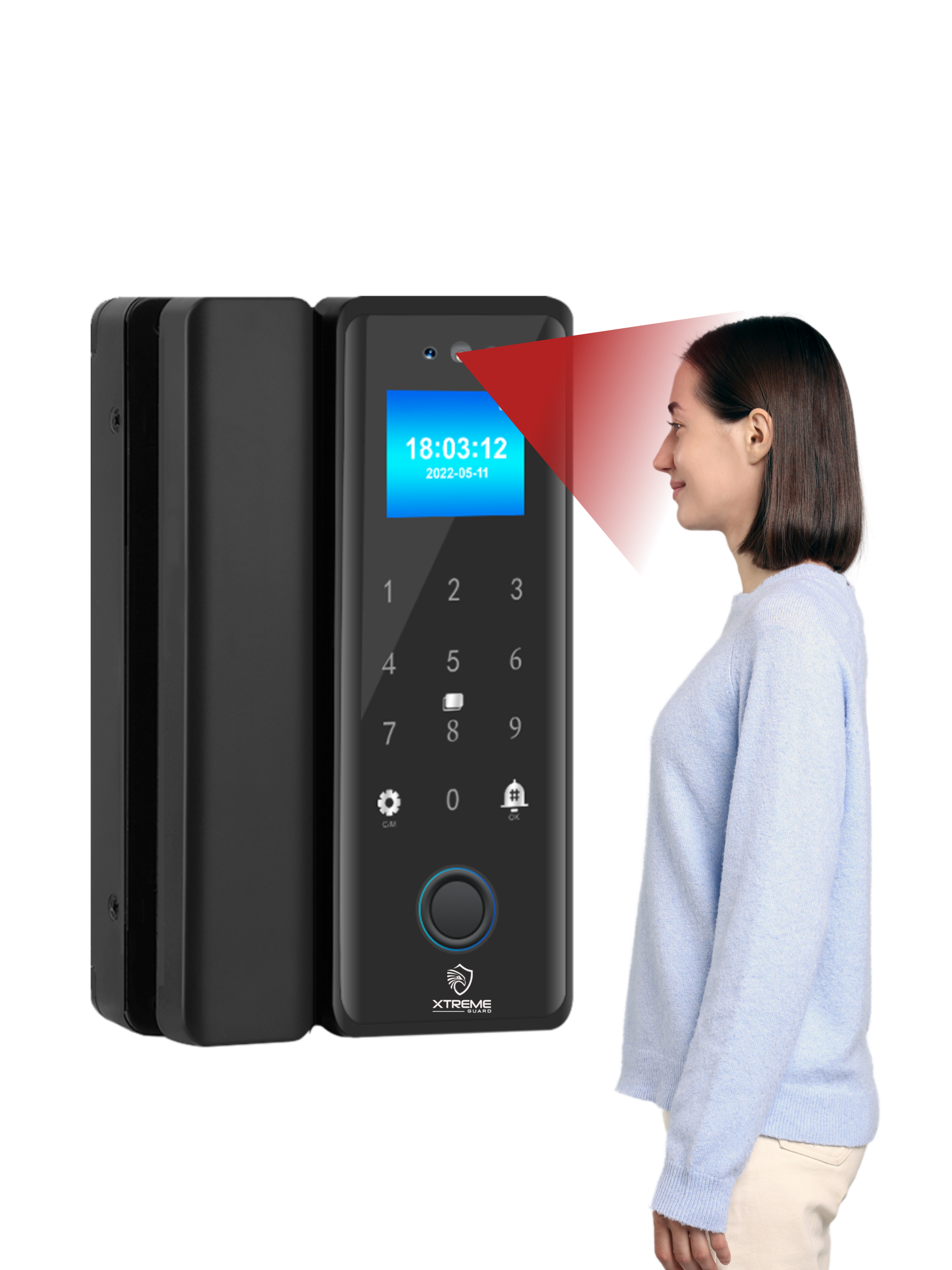

  • Fast recognition (<0.5 sec) with advanced anti-spoofing
  • User-friendly OLED touch panel

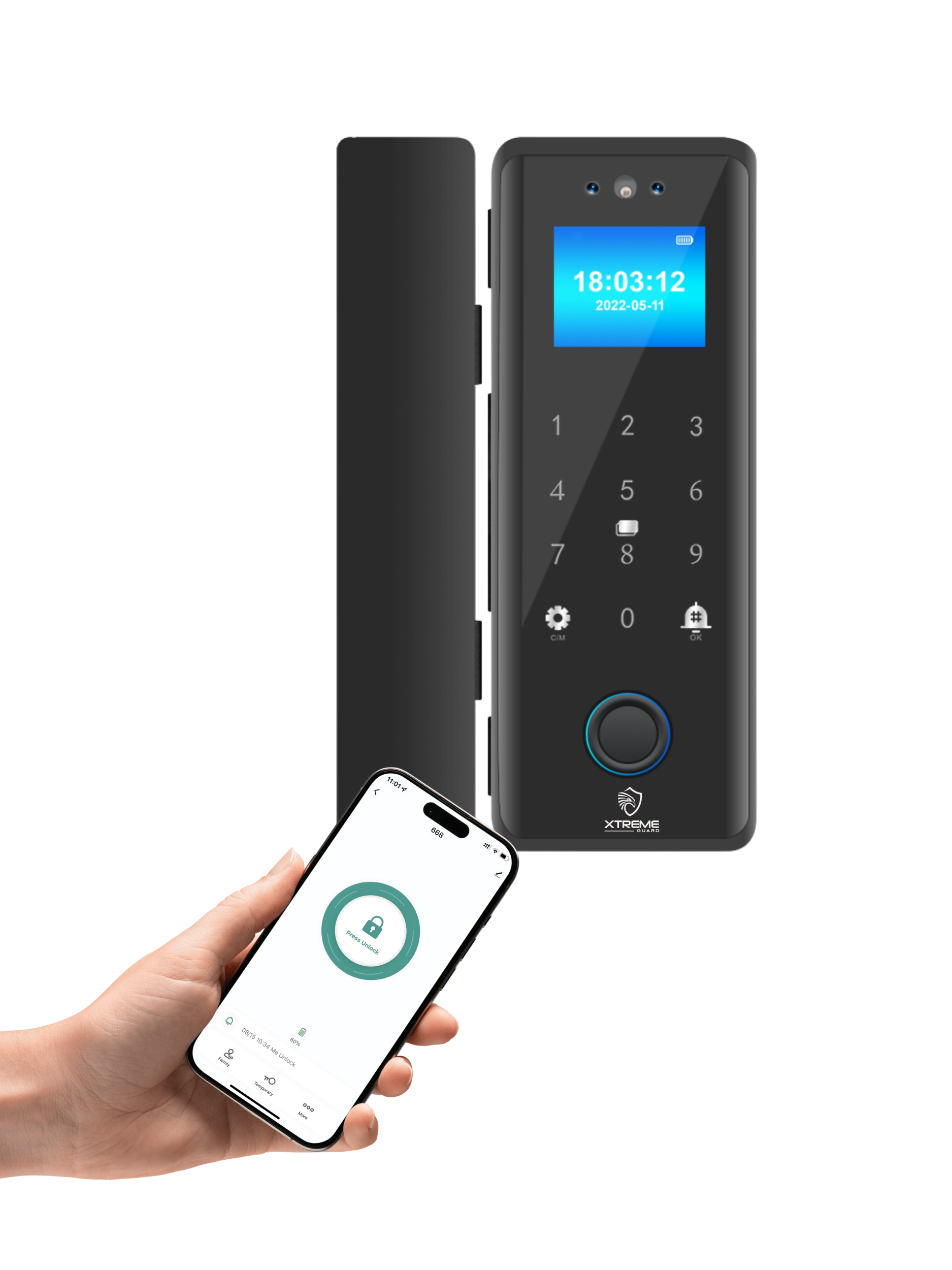

  • Mobile app control with real-time access logs
  • 2500mAh lithium battery with USB emergency power
  • Auto-lock and normal open modes

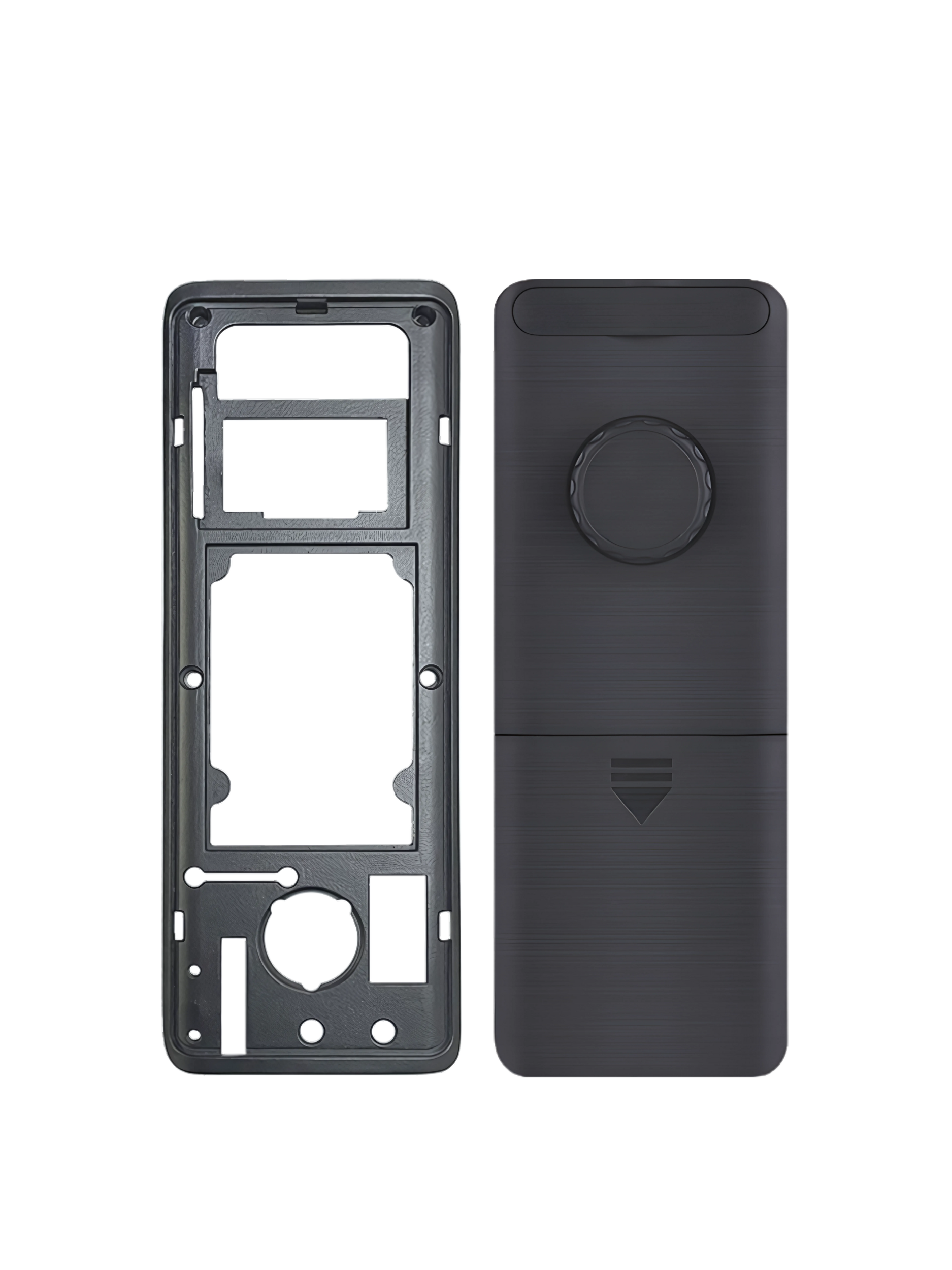

  • Indoor knob for manual operation

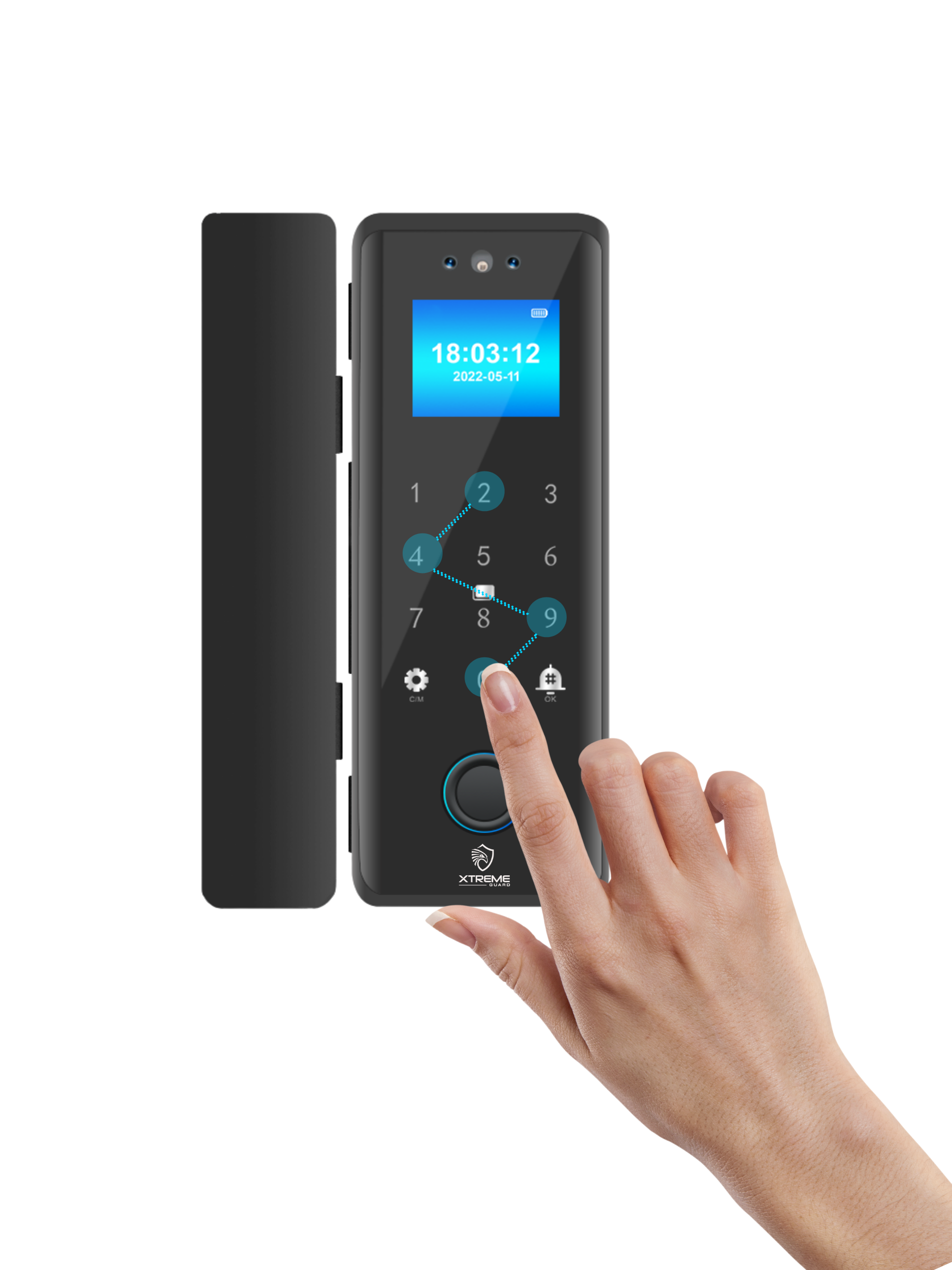

  • Scramble password feature for added security

  • Description
  • Specifications
  • Download
  • Videos

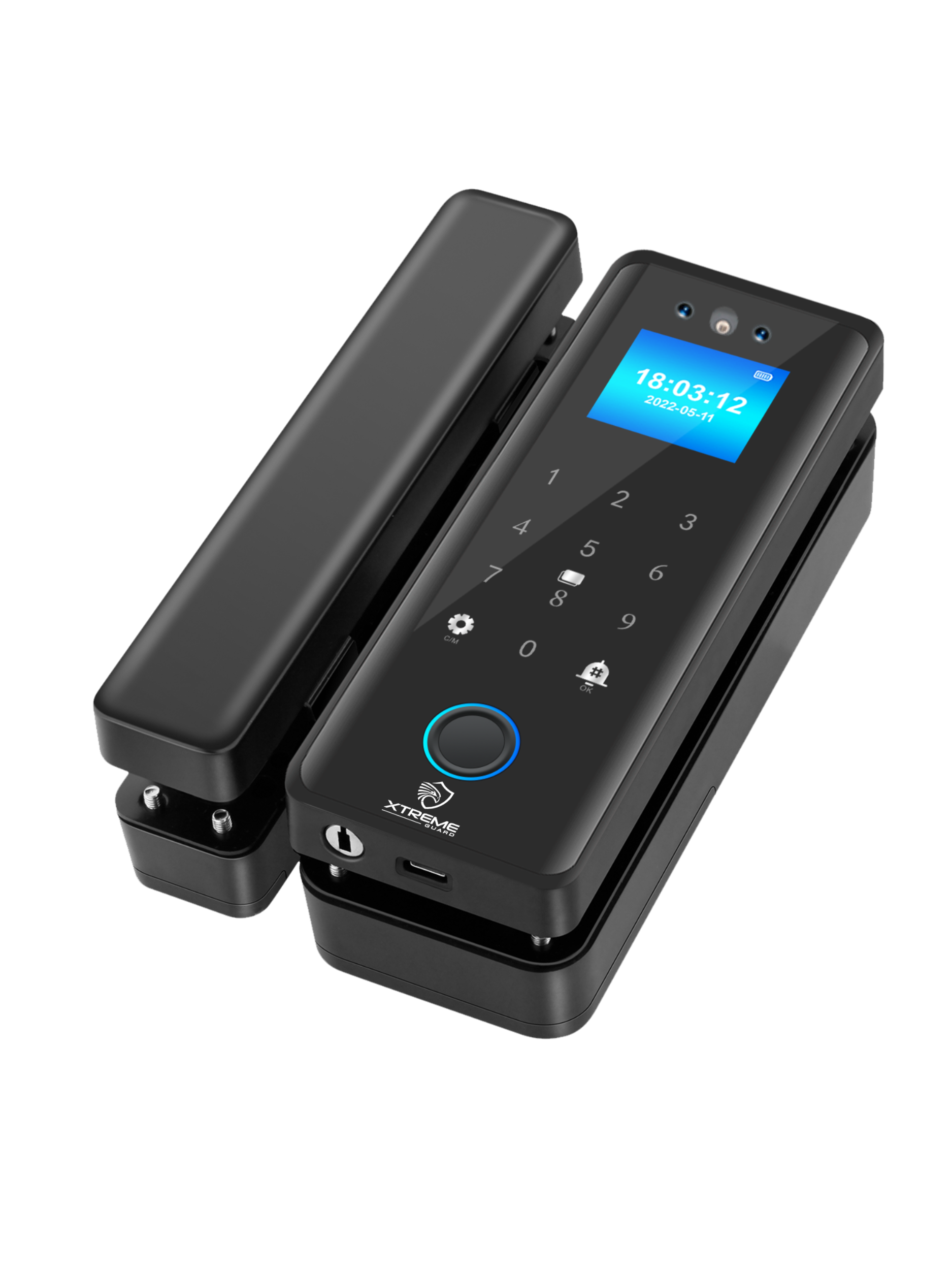

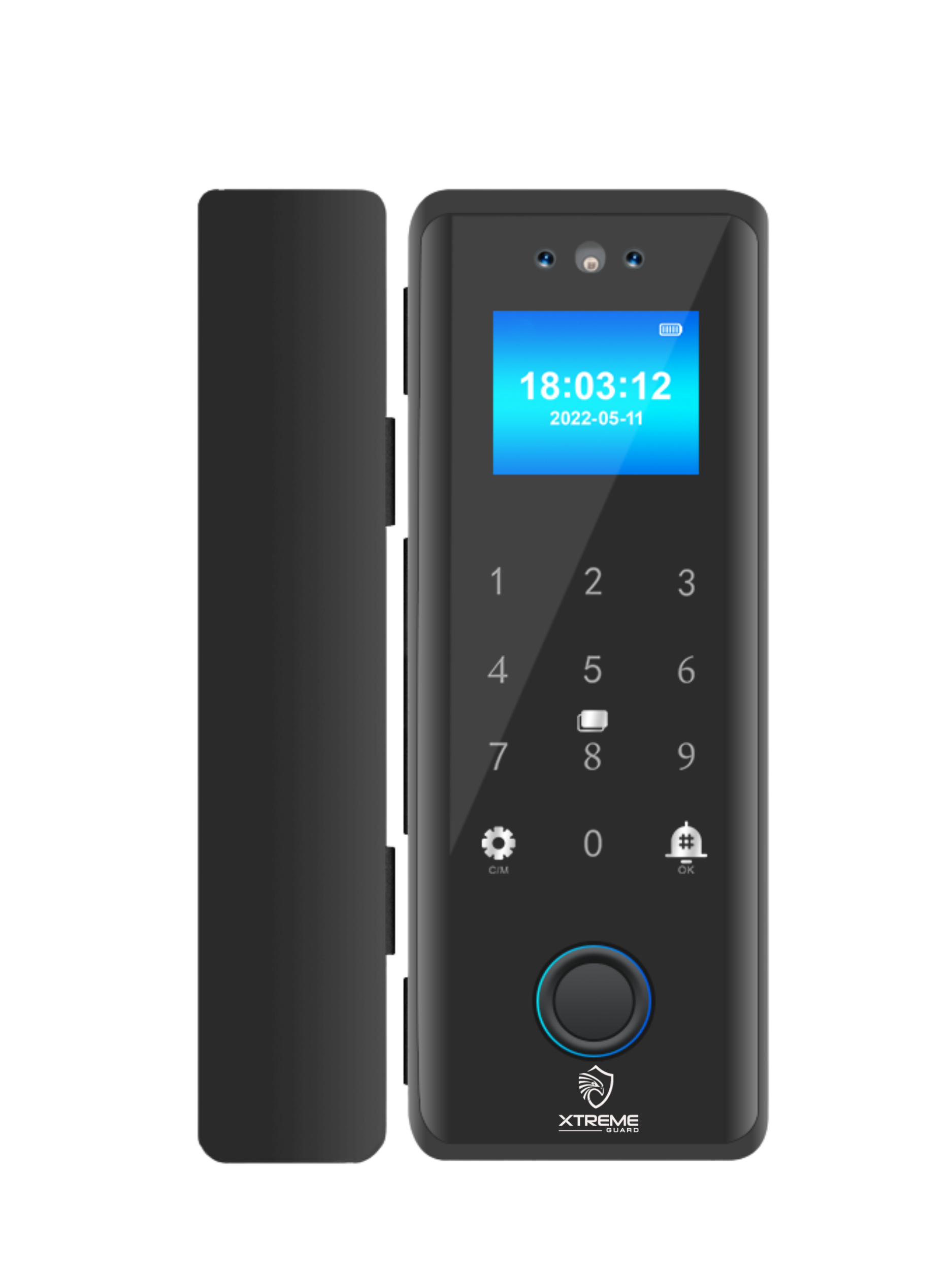

The XSL-300 Smart Wooden Door Lock System is a modern, high-security access solution crafted specifically for wooden doors, ideal for both residential and commercial settings. It combines cutting-edge technology with sleek design to deliver convenience, control, and safety.

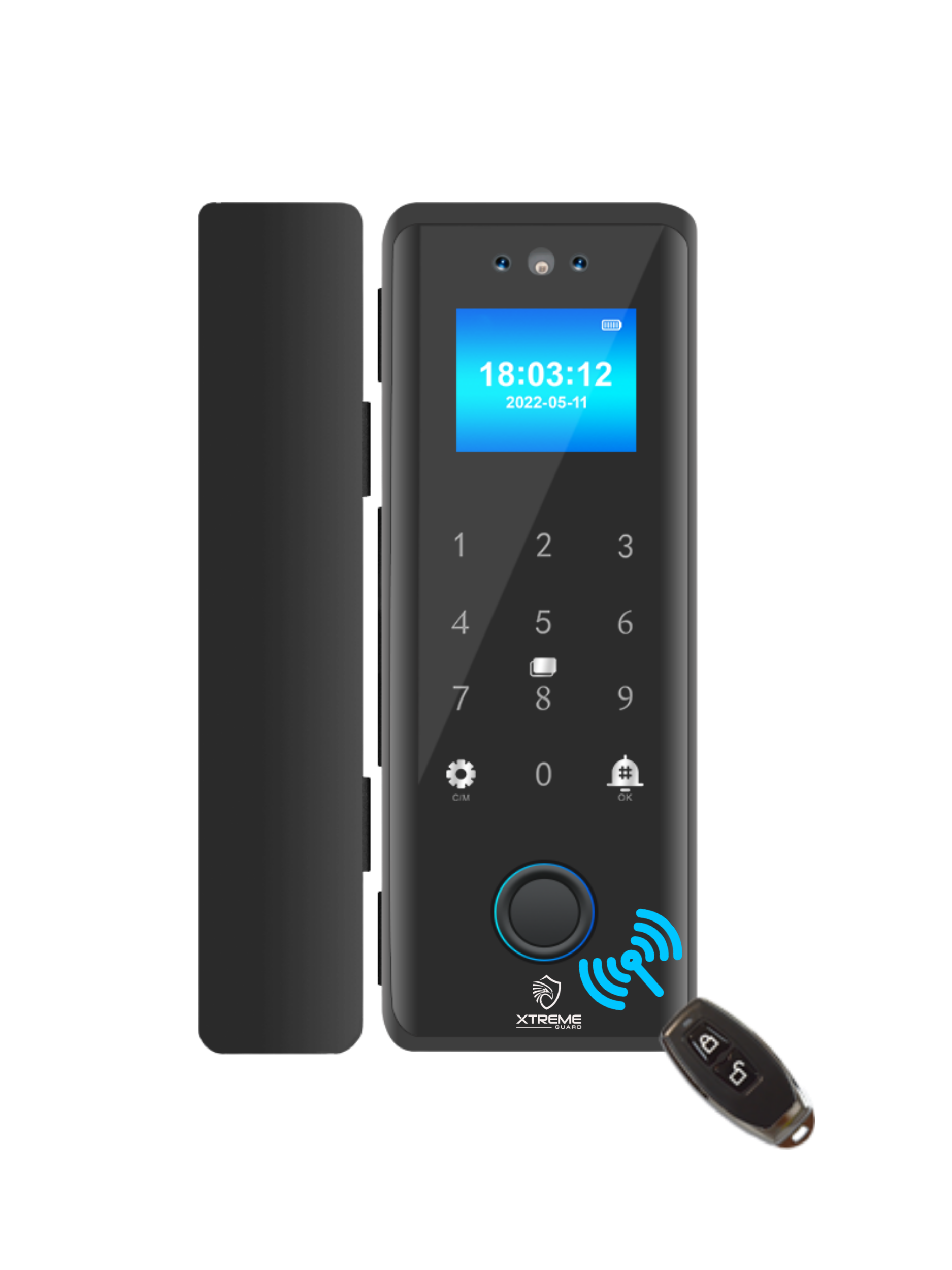

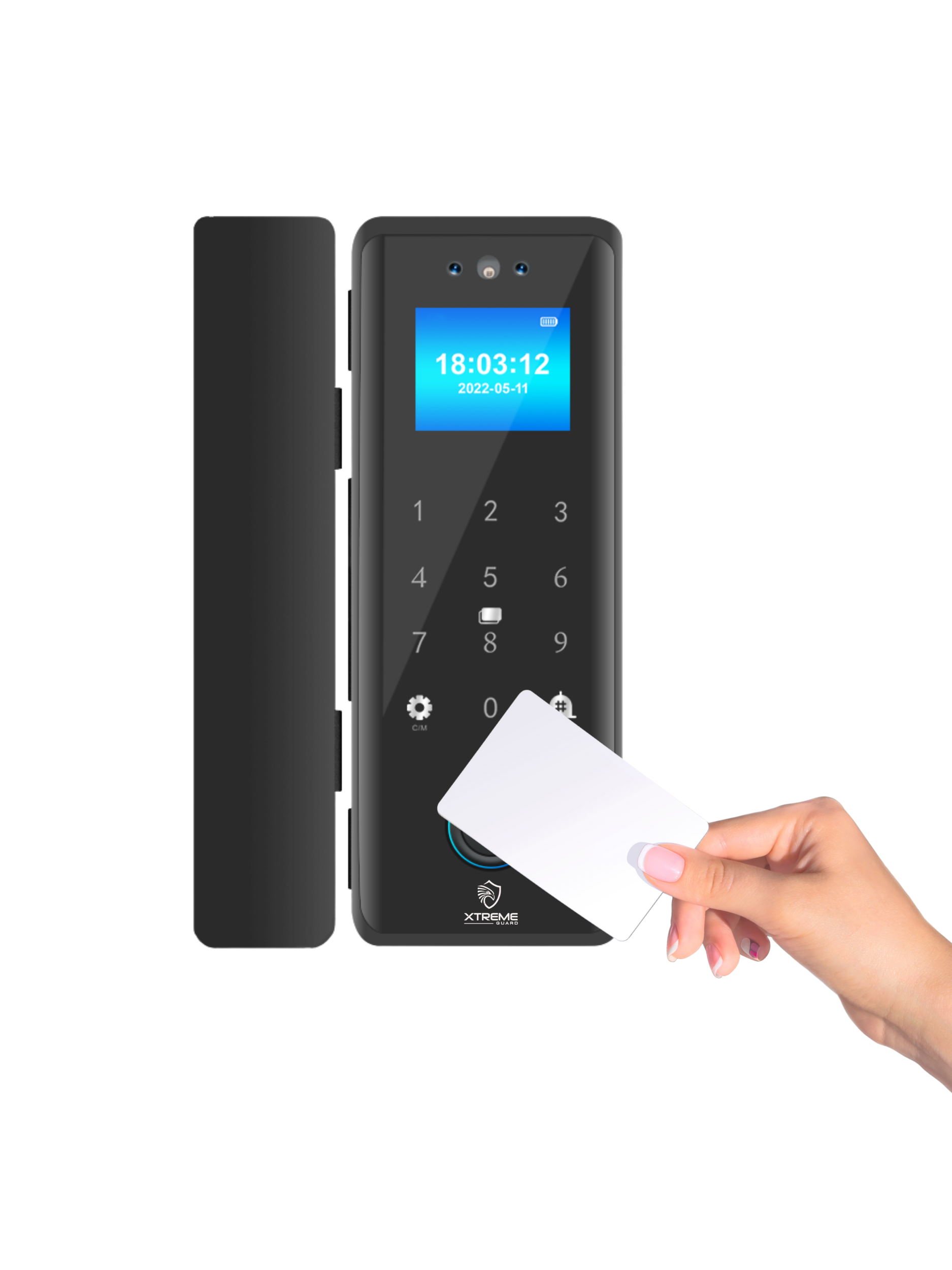

This lock supports multiple unlocking methods: face recognition, fingerprint, RFID card, password, mobile app, remote control, and mechanical key, giving users flexible and secure access options. Its advanced encryption and anti-tamper design provide robust protection against unauthorized entry.

The system includes a user-friendly touch panel and a 1.77-inch TFT color display, allowing for intuitive operation. A 2500mAh rechargeable lithium battery powers the unit, with a USB emergency port for backup. The XSL-300 supports up to 100 faces, 100 fingerprints, 1000 passwords, and 1000 RFID cards.

Other key features include auto-locking, normal open mode, scramble password entry, and remote access and monitoring via mobile app. It's designed for 10–12mm thick wooden doors and features a durable aluminum alloy body with IML process finish.
Attribute Value
Model XSL-300
Application Wooden doors (10–12mm thickness)
Unlock Methods Face, Fingerprint, RFID, Password, App, Mechanical Key
Recognition Speed <0.5 seconds
Display 1.77-inch OLED screen
Material Aluminum alloy (IML finish)
Battery 2500mAh lithium-ion
Emergency Power USB port
Capacity 100 faces, 100 fingerprints, 1000 passwords/cards
Lock Modes Auto-lock, Normal open
Manual Control Indoor knob
Dimensions 170mm × 32mm × 62mm
File Icon XSL-300 - Data Sheet File size: 5.5 MB Last updated: 05 May 2025 Download
