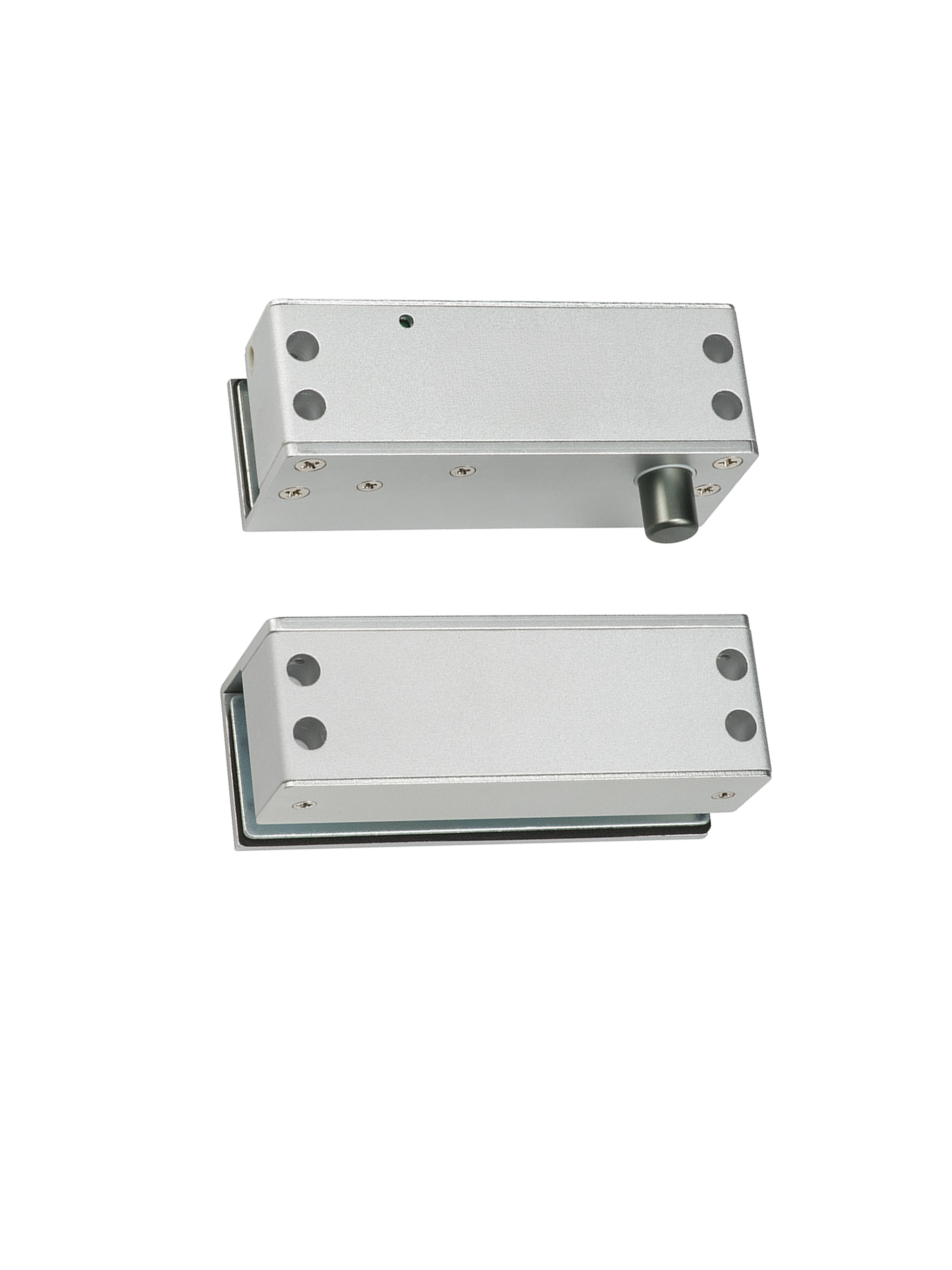

XL-137
- Compact surface-mount dead bolt lock for frameless glass, metal, or wooden doors
- Microcontroller-controlled for efficient power management
- Adjustable lock delay (0–3 seconds) for tailored access needs
- Durable performance with over 500,000 mechanical operations
- Real-time lock status monitoring and push-button control input
- Energy-efficient: reduces to 210mA after locking; operates at 570mA
- Ideal for offices, commercial spaces, and glass door entryways
- Compact body and strike plate for flexible installations
- Description
- Specifications
- Download
- Videos
The XL-137 Dead Bolt Lock is a precision-engineered, energy-efficient locking system designed for frameless glass doors and other light-to-medium-duty entry points. With its compact, surface-mount design and microcontroller-controlled current management, it’s built for performance in space-limited, high-traffic environments.
The unit delivers secure locking with a 14mm stainless steel throw bolt, while supporting customizable delay settings (0–3 seconds) and push-button control integration. Its real-time lock status output helps enhance access monitoring, especially in security-conscious zones.
Rated for over 500,000 operations and consuming as low as 210mA standby, the XL-137 is ideal for use in modern offices, commercial buildings, and upscale residential units, especially where glass door aesthetics and discrete installation are priorities.
The unit delivers secure locking with a 14mm stainless steel throw bolt, while supporting customizable delay settings (0–3 seconds) and push-button control integration. Its real-time lock status output helps enhance access monitoring, especially in security-conscious zones.
Rated for over 500,000 operations and consuming as low as 210mA standby, the XL-137 is ideal for use in modern offices, commercial buildings, and upscale residential units, especially where glass door aesthetics and discrete installation are priorities.
| Attribute | Value |
|---|---|
| Model | XL-137 |
| Type | Electric Dead Bolt Lock (Glass Door Compatible) |
| Compatible Doors | Frameless glass, hollow metal, wooden (90°–180°) |
| Locking Mechanism | Fail-secure (locked on power loss) |
| Bolt Dimensions | 14mm (throw) × 12.7mm (diameter) |
| Delay Timer | Adjustable: 0 / 2.5 / 5 / 9 seconds |
| Power Supply | DC 12V ±10% |
| Operation Current | 570mA |
| Standby Current | 210mA |
| Mechanical Life | >500,000 cycles |
| Lock Status Output | Yes (real-time monitoring) |
| Push Button Input | Supported |
| Dimensions (Body) | 114 × 46.7 × 39 mm |
| Dimensions (Strike Plate) | 113.5 × 46.7 × 39.2 mm |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | ≤85% RH |
| Application | Offices, shops, commercial glass doors, residential glass entryways |
