Standalone

XAC-109SWIFI

  • Standalone access control with WiFi, RFID, fingerprint, and password support
  • Remote access and monitoring via mobile app
  • Stores up to 600 fingerprints and 600 RFID cards
  • Supports 8 password sets for flexible user access
  • Ultra-fast verification in under 0.5 seconds
  • IP68 waterproof zinc alloy metal casing for outdoor use
  • Dual relay outputs for door lock and alarm control
  • Anti-tamper and anti-static protection built-in
  • Backlit touch panel for night visibility
  • Ideal for offices, homes, apartments, and industrial sites

  • Description
  • Specifications
  • Download
  • Videos

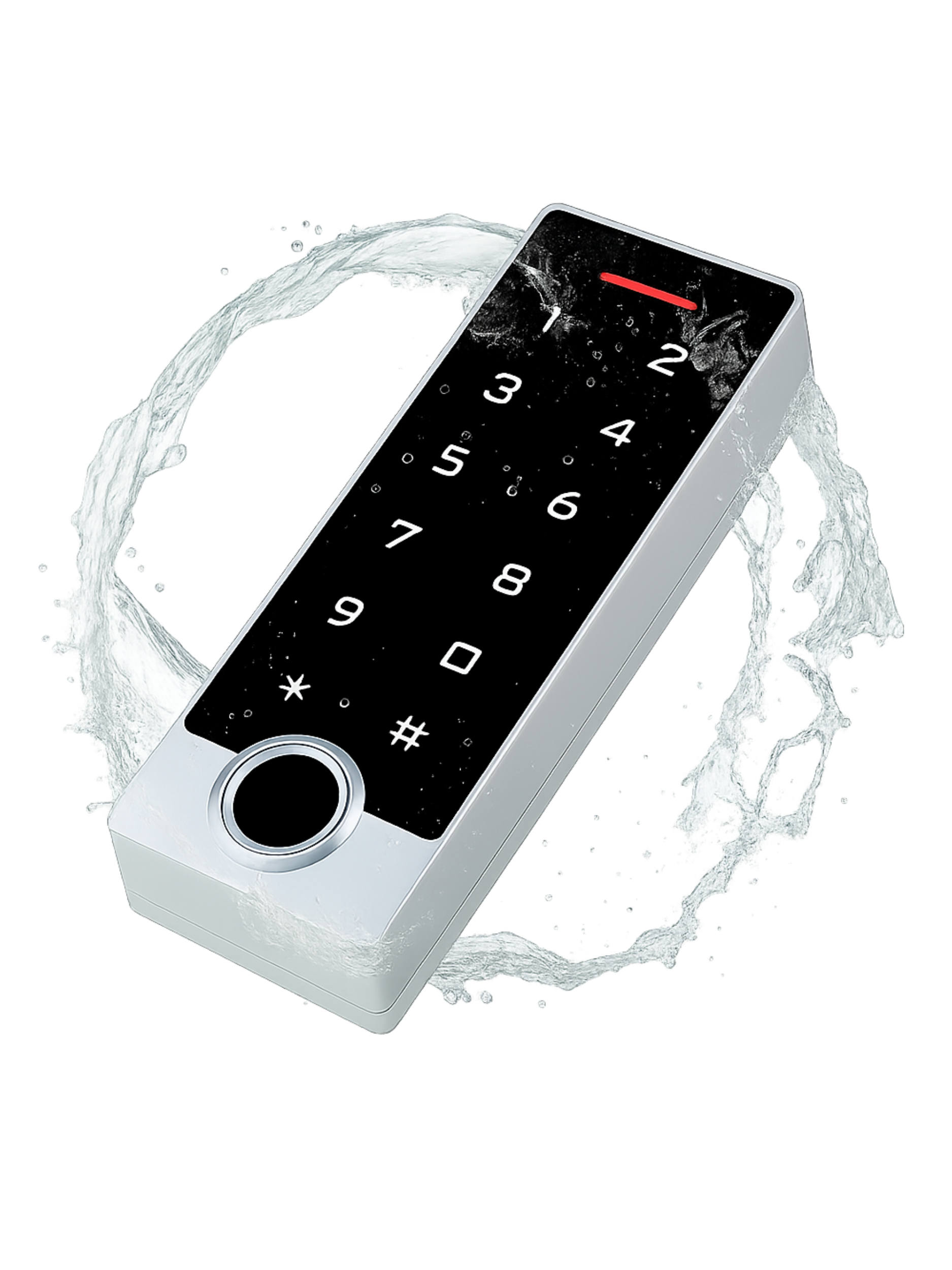

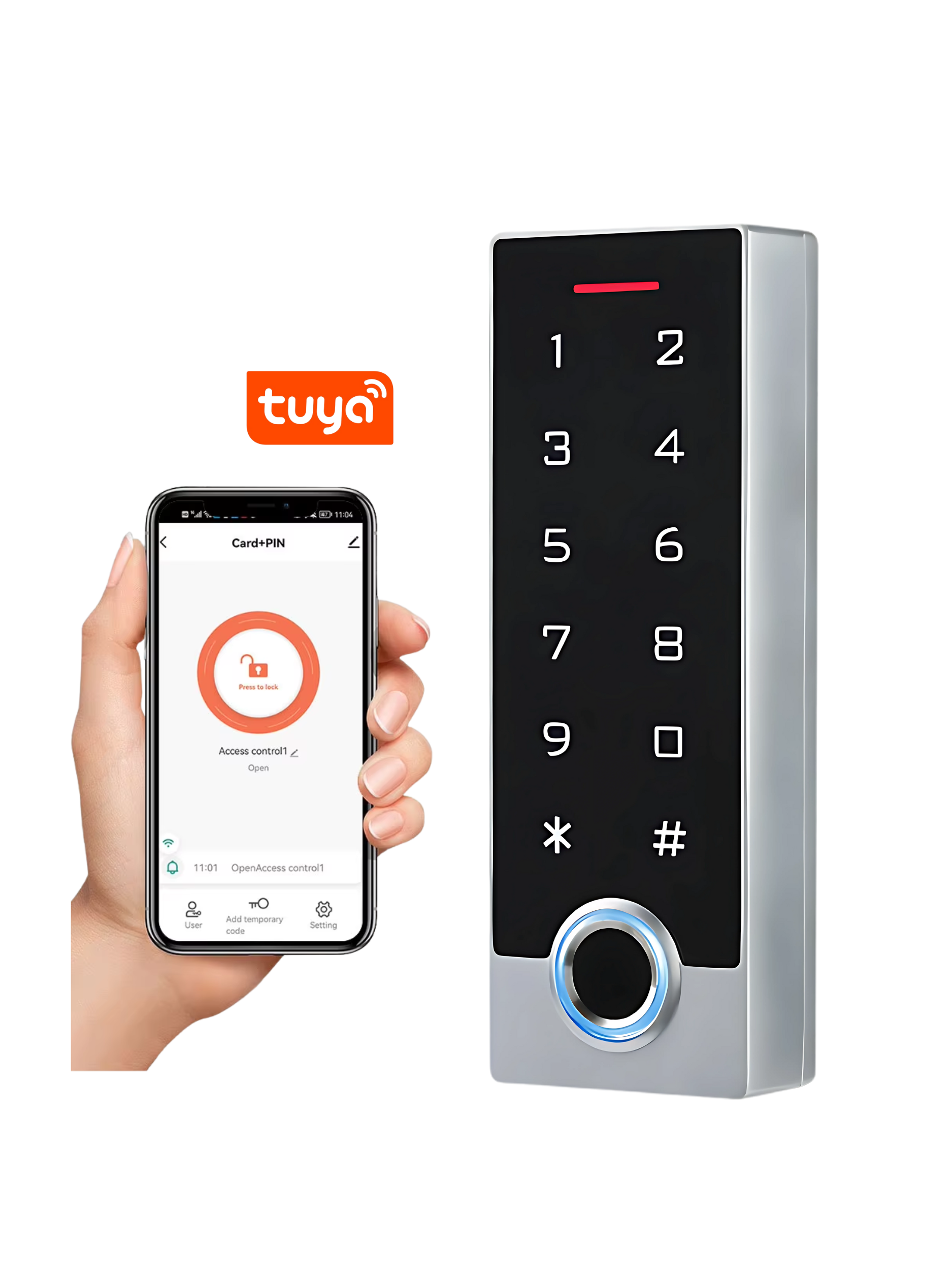

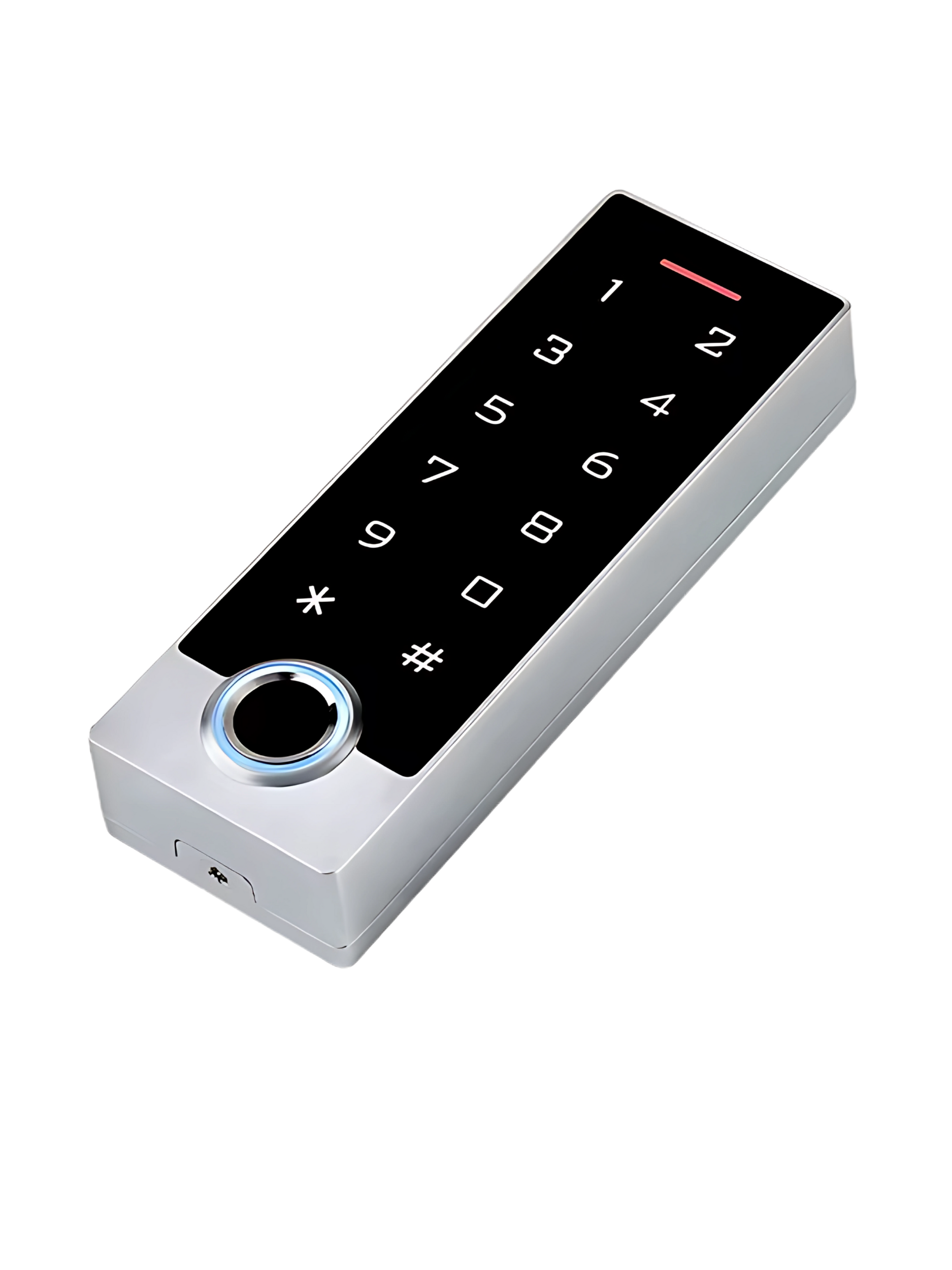

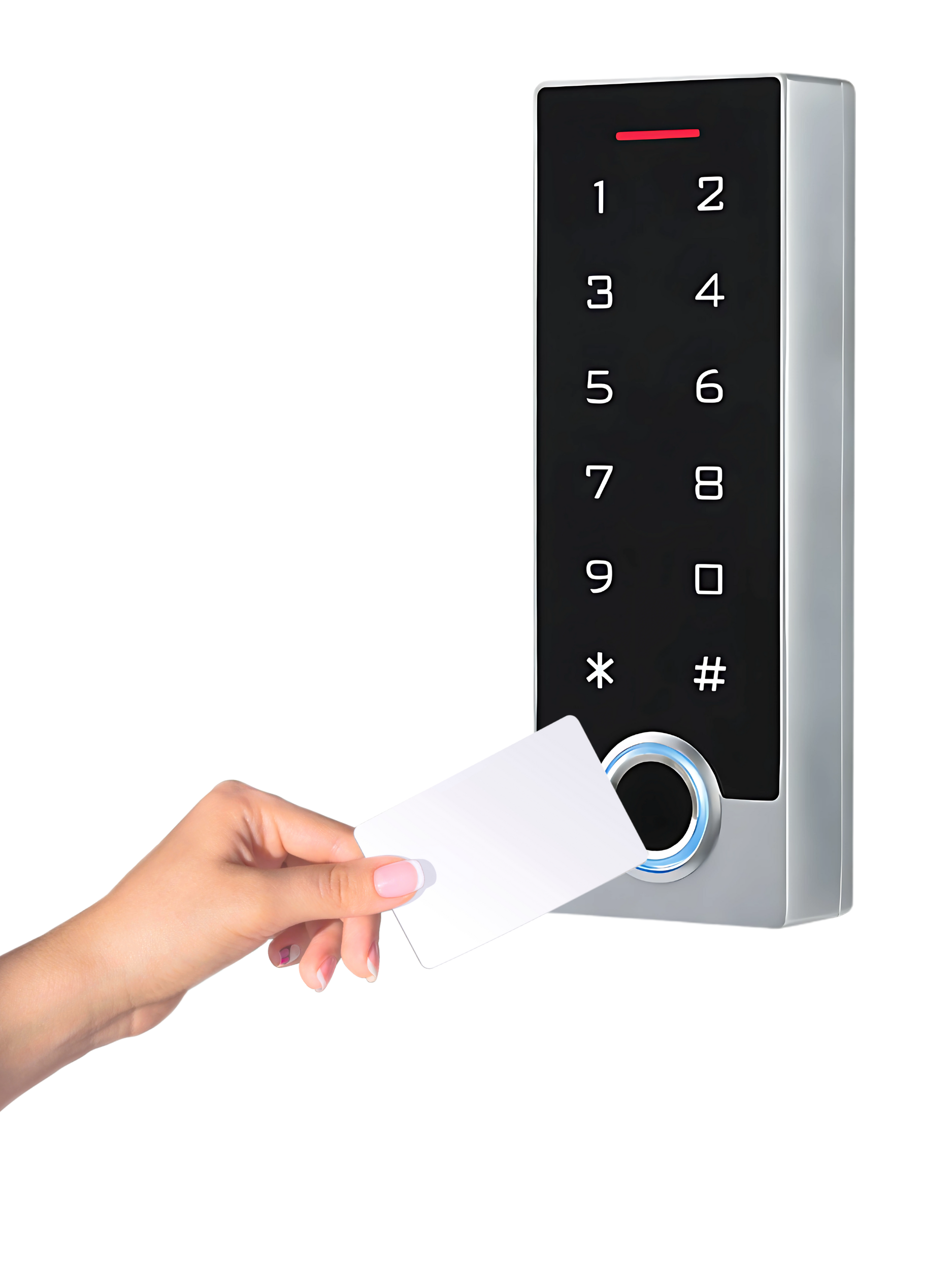

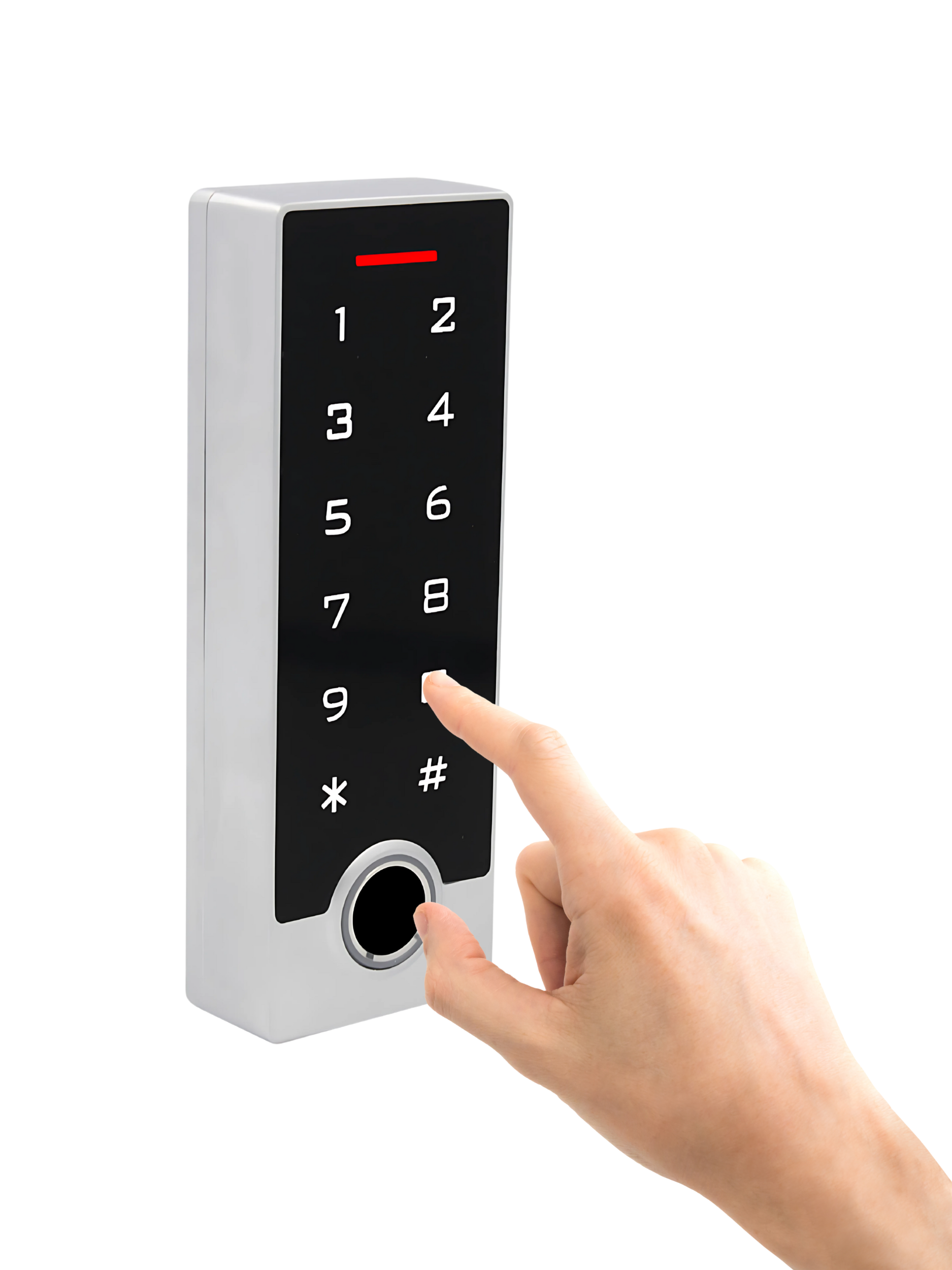

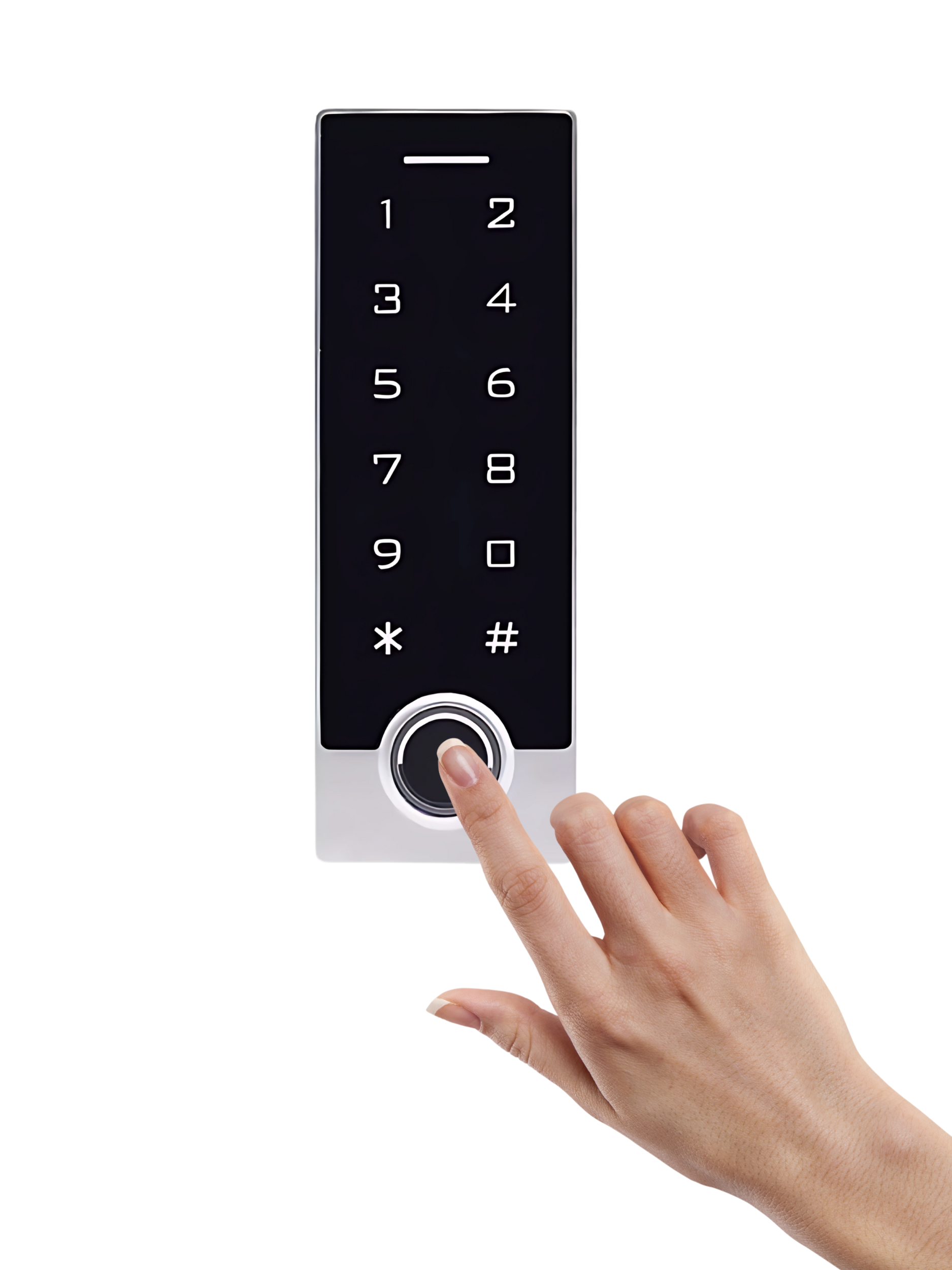

The XAC-109S WIFI is a multifunctional standalone access control system that supports fingerprint, RFID card, password, and mobile app access. With WiFi connectivity, fast verification, and a durable IP68 waterproof metal body, it offers secure and flexible entry for both indoor and outdoor environments—ideal for residential, commercial, and industrial applications.

With capacity for 600 fingerprints, 600 RFID cards, and 8 password sets, it supports multi-factor authentication and processes entries in under 0.5 seconds. Dual relay outputs allow integration with door locks and alarms, while WiFi capability enables remote management and control via mobile apps, providing convenience and flexibility for property owners and security teams.

Its zinc alloy body, anti-tamper protection, and anti-static resistance enhance durability and security. Illuminated touch buttons and sleek design make it visually modern and suitable for any setting, including offices, factories, residential complexes, and gated communities.

Whether managing a small apartment or a large commercial facility, the XAC-109WIFI is a smart, secure, and connected access control solution.
Attribute Value
Model XAC-109S WIFI
Access Modes RFID, Fingerprint, Password, Mobile App
User Capacity 600 fingerprints, 600 cards, 8 passwords
Read Range 3–6 cm
WiFi Support Yes
Verification Speed <0.5 seconds
Relay Outputs 2 (Door lock & alarm)
Waterproof Rating IP68
Protection Tamper alarm & 15kV anti-static
Power Supply DC 12V/3A
Dimensions 135 × 47 × 23 mm
Operating Temp 0°C to 45°C
Material Zinc alloy metal casing
Applications Gates, apartments, warehouses, offices
File Icon XAC-109SWIFI - Data Sheet File size: 2.87 MB Last updated: 05 May 2025 Download
