Biometric

OX-745

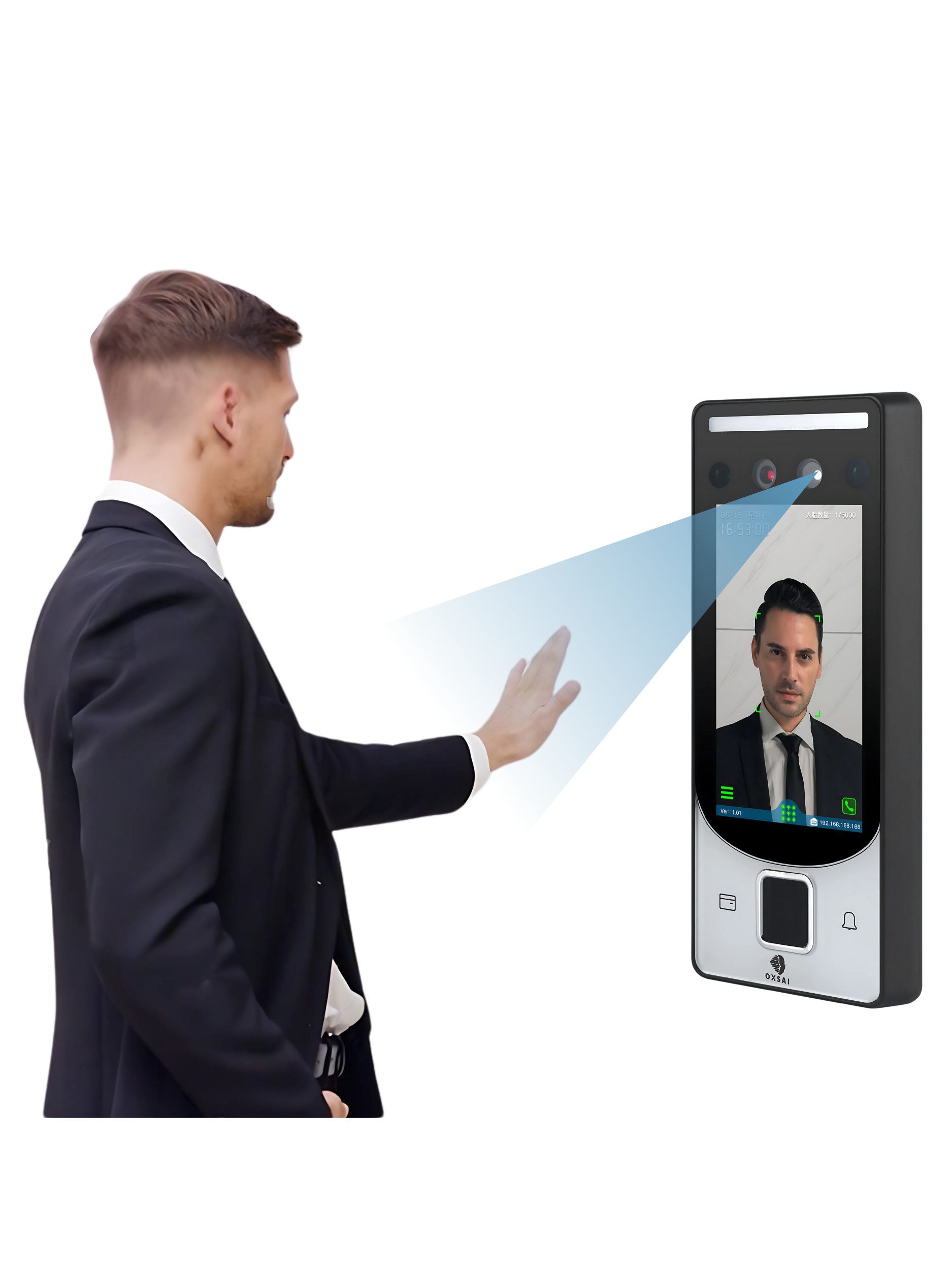

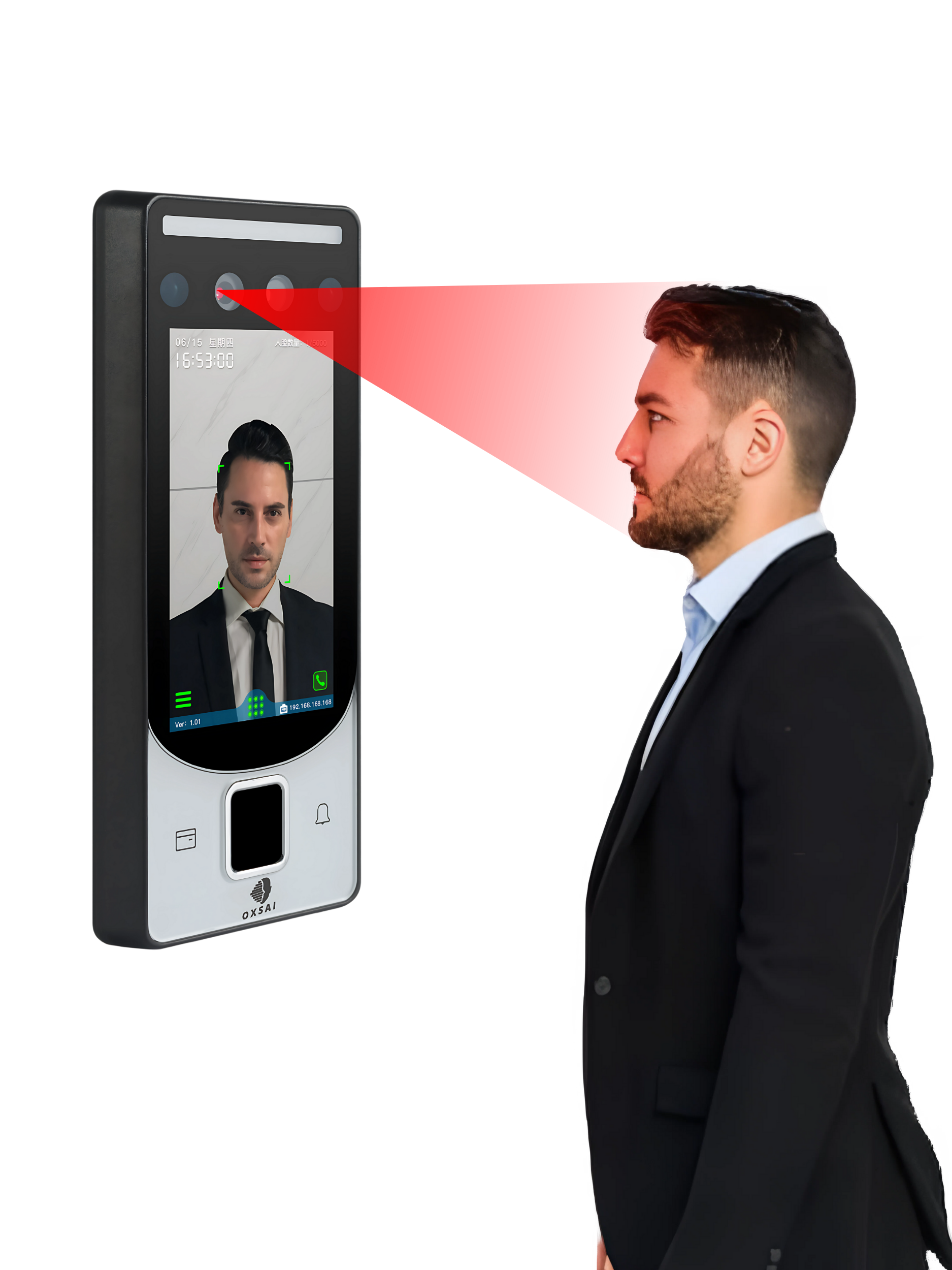

  • AI face recognition with 0.3s high-speed verification

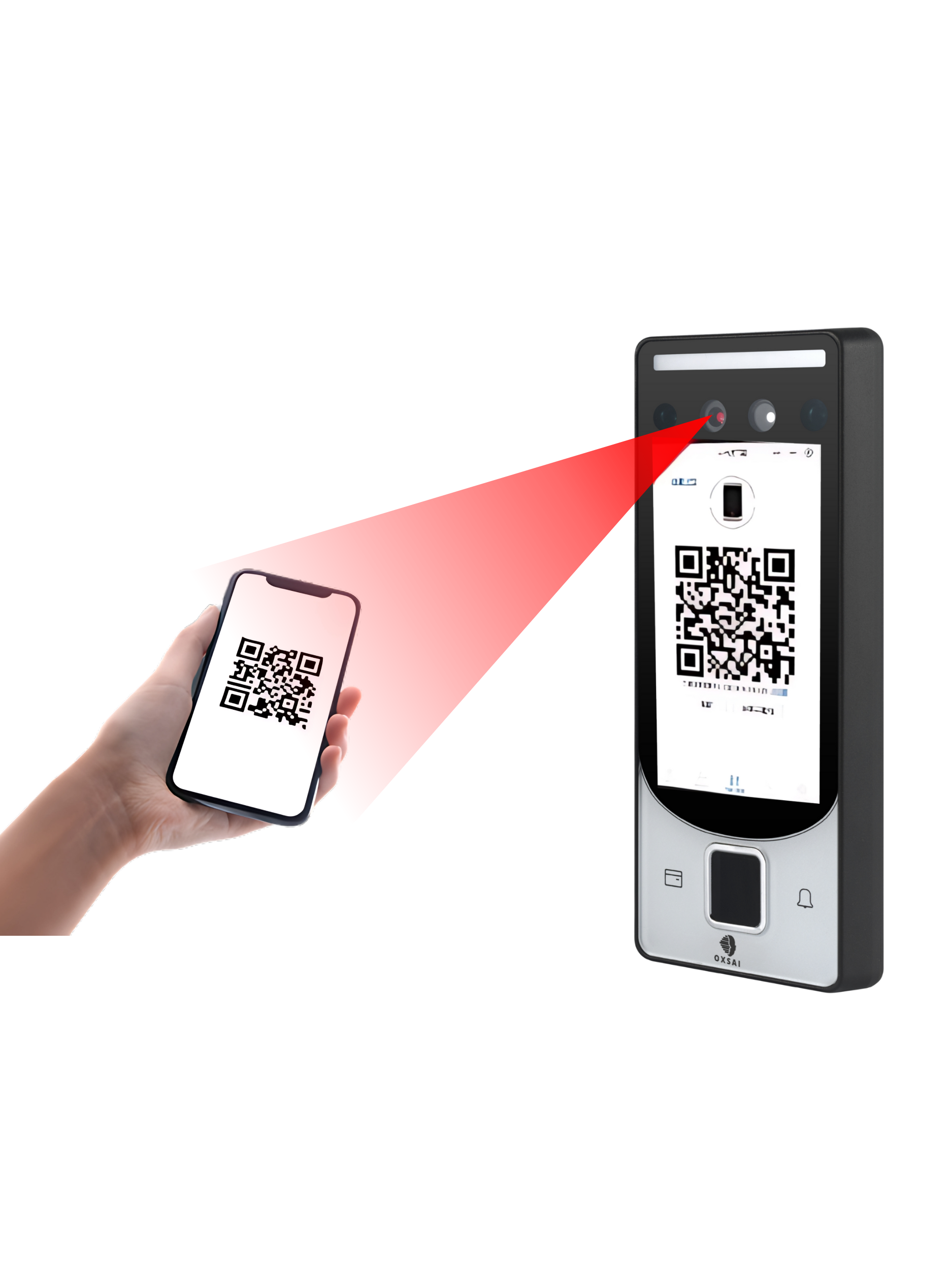

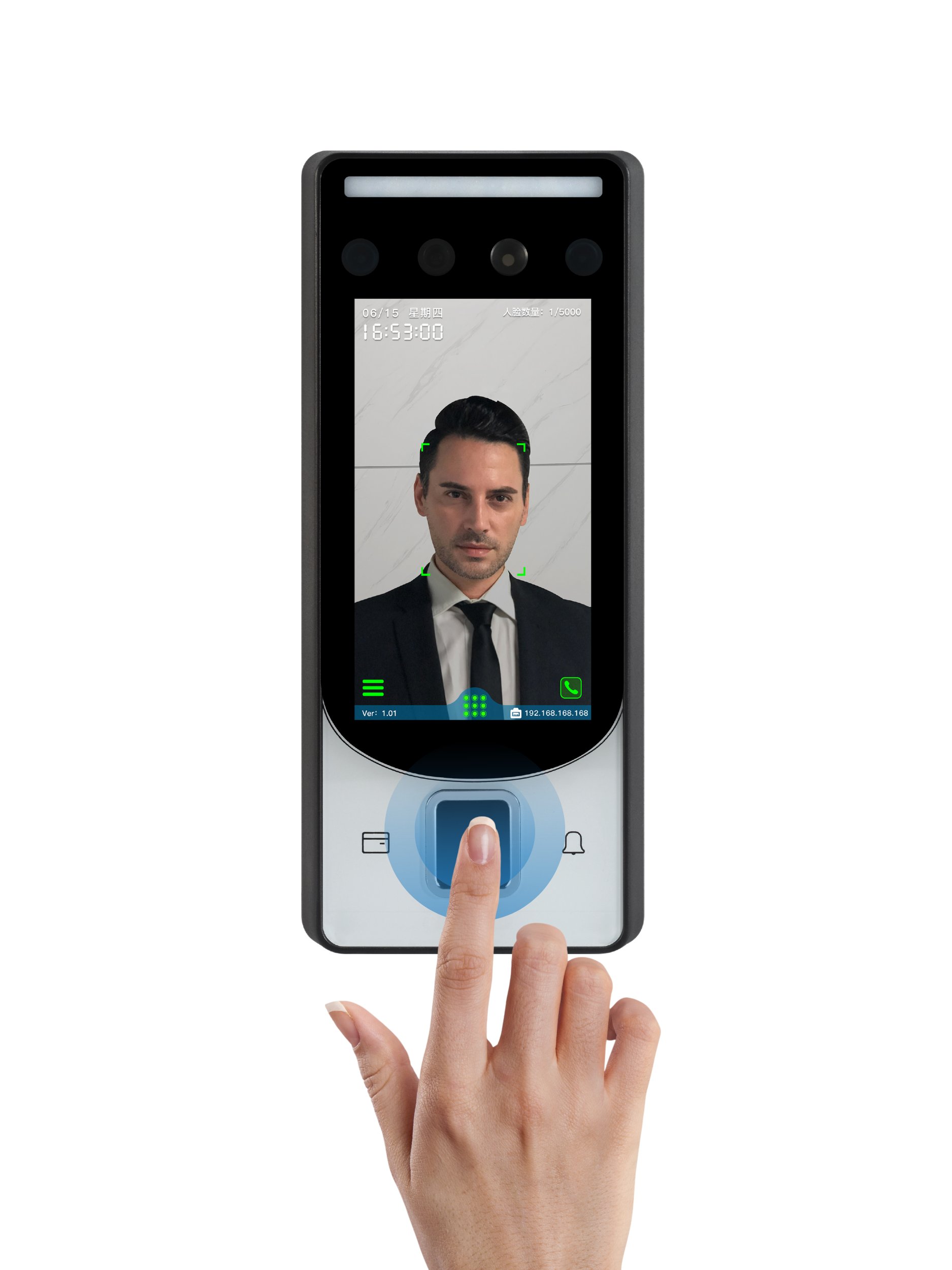

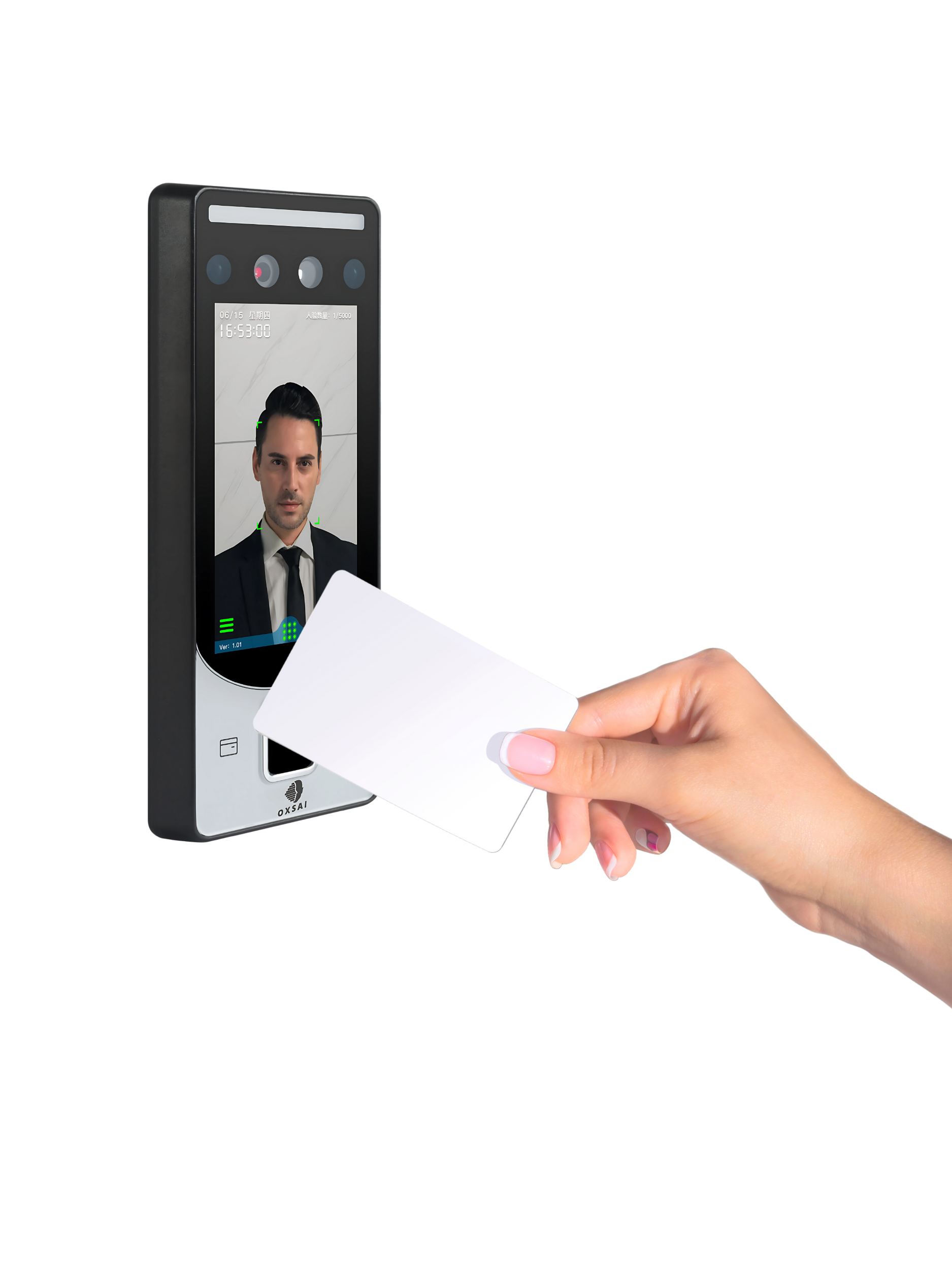

  • Supports Face, Palm,Fingerprint, QR, Card, NFC
  • 50,000 face templates & 5,000 users (QR, card, fingerprint, palm)
  • Cloud/Web software for access & time attendance
  • IP65 waterproof and IK04 vandal-proof
  • Anti-spoofing, mask/sunglasses/aging detection
  • OTA upgrade and mobile app support
  • Integrated payroll, leave, and visitor management
  • Multiple alerts via email, WhatsApp, SMS
  • Suitable for industrial, high-humidity, and coastal areas

  • Description
  • Specifications
  • Download
  • Videos

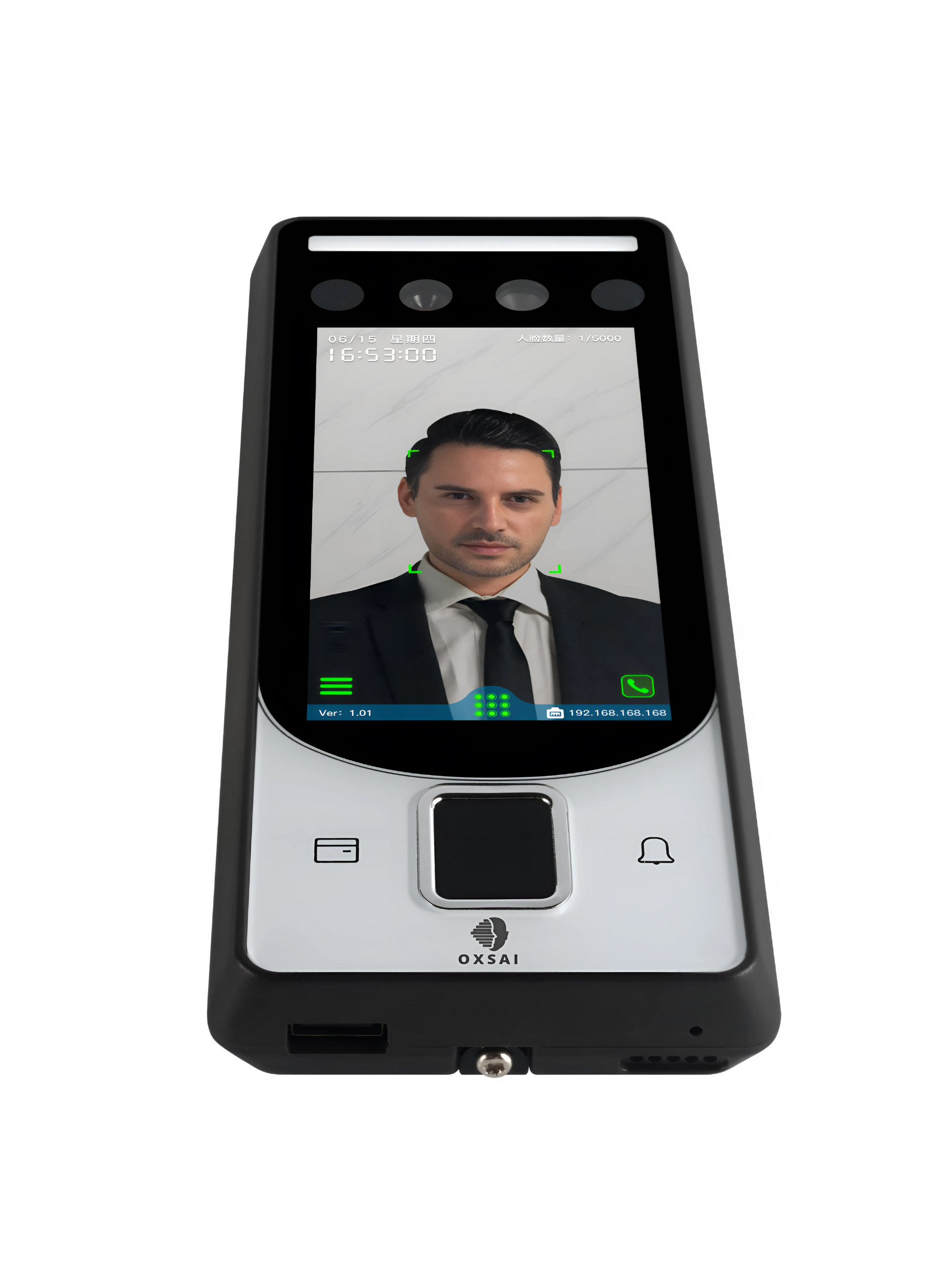

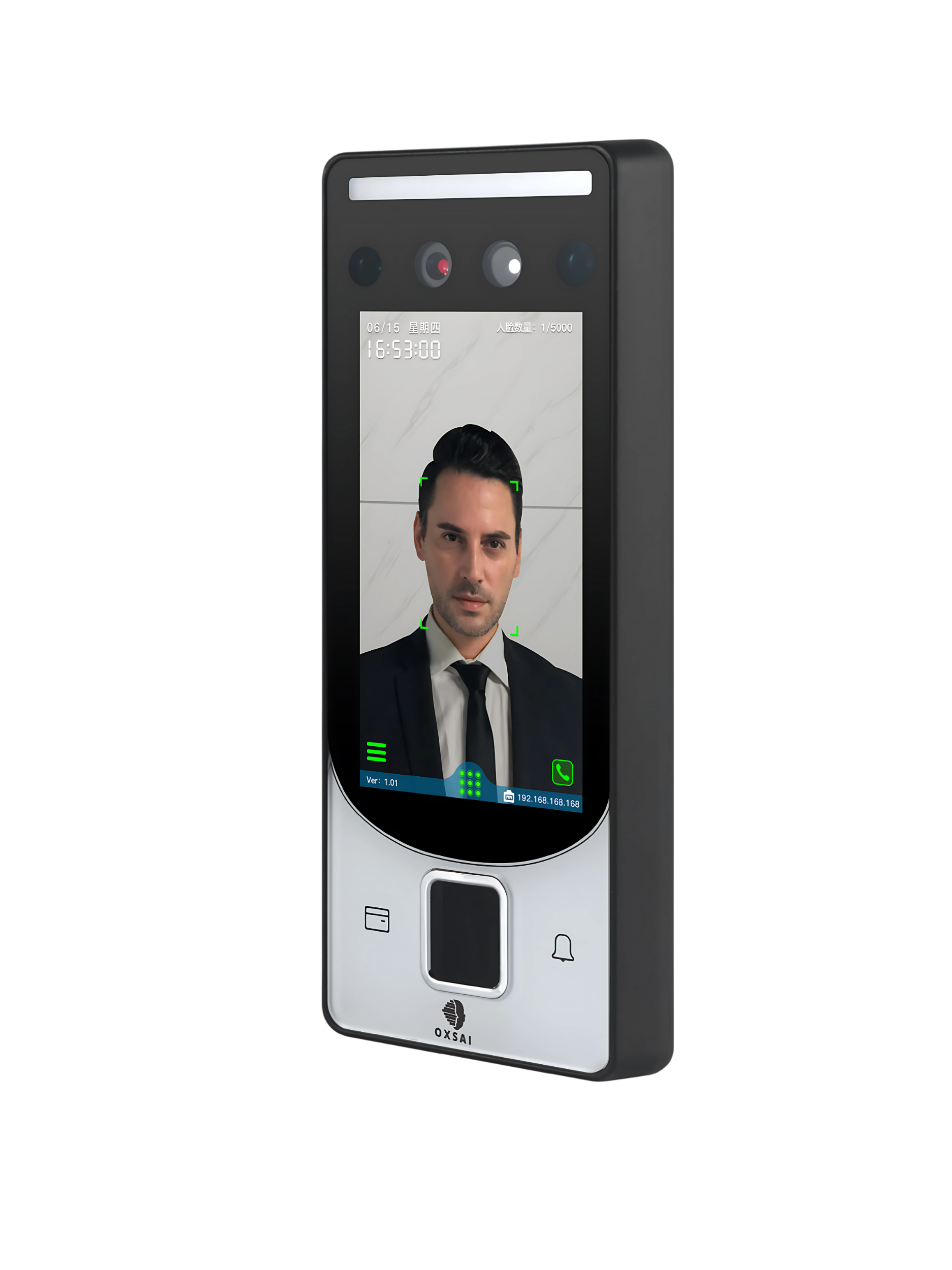

The OX-745 AI Face Recognition & Cloud-Based Access Control Terminal is a high-speed, multi-modal biometric device designed for secure access control and time attendance tracking in diverse environments. It supports face recognition, fingerprint, palm vein scanning, QR code, RFID/NFC cards, and password authentication, delivering hygienic and contactless entry with high precision.

With a dual-core processor, anti-spoofing AI, and a robust IP65-rated waterproof and IK04 vandal-proof design, it ensures reliable performance in industrial, coastal, and high-humidity locations. The device stores up to 50,000 face templates and 200,000 access records, and integrates seamlessly with cloud/web-based software for attendance, payroll, visitor management, and mobile notifications.

The OX-745 offers versatile connectivity (TCP/IP, Wi-Fi, RS485, RS232, optional 4G) and comprehensive access interfaces (lock relay, alarm, door sensor, exit button), making it a flexible, scalable, and secure solution for enterprise-level biometric access control.
Attribute Value
Model OX-745
Face Capacity 5,000 (standard) / 50,000 (optional)
User Capacity 5,000 (QR, Card, Fingerprint, Palm)
Recognition Speed 0.3 seconds
Authentication Modes Face, Palm, Fingerprint, QR, NFC, Card
Protection Rating IP65 waterproof, IK04 vandal-proof
Communication TCP/IP, Wi-Fi, RS485, Optional 4G
Software Cloud/Web-based with mobile apps
Operating Temp -30°C to 65°C
Power Supply DC 12V (<1000mA)
Dimensions 165 x 79 x 21 mm
Weight 0.6 kg
File Icon OX-745 - Data Sheet File size: 3.29 MB Last updated: 06 May 2025 Download
