Biometric

OX-945

  • Multi-modal authentication: Face, palm vein, QR code, RFID, NFC, PIN
  • High capacity: 20,000 faces, 10,000 palm templates, 1M records

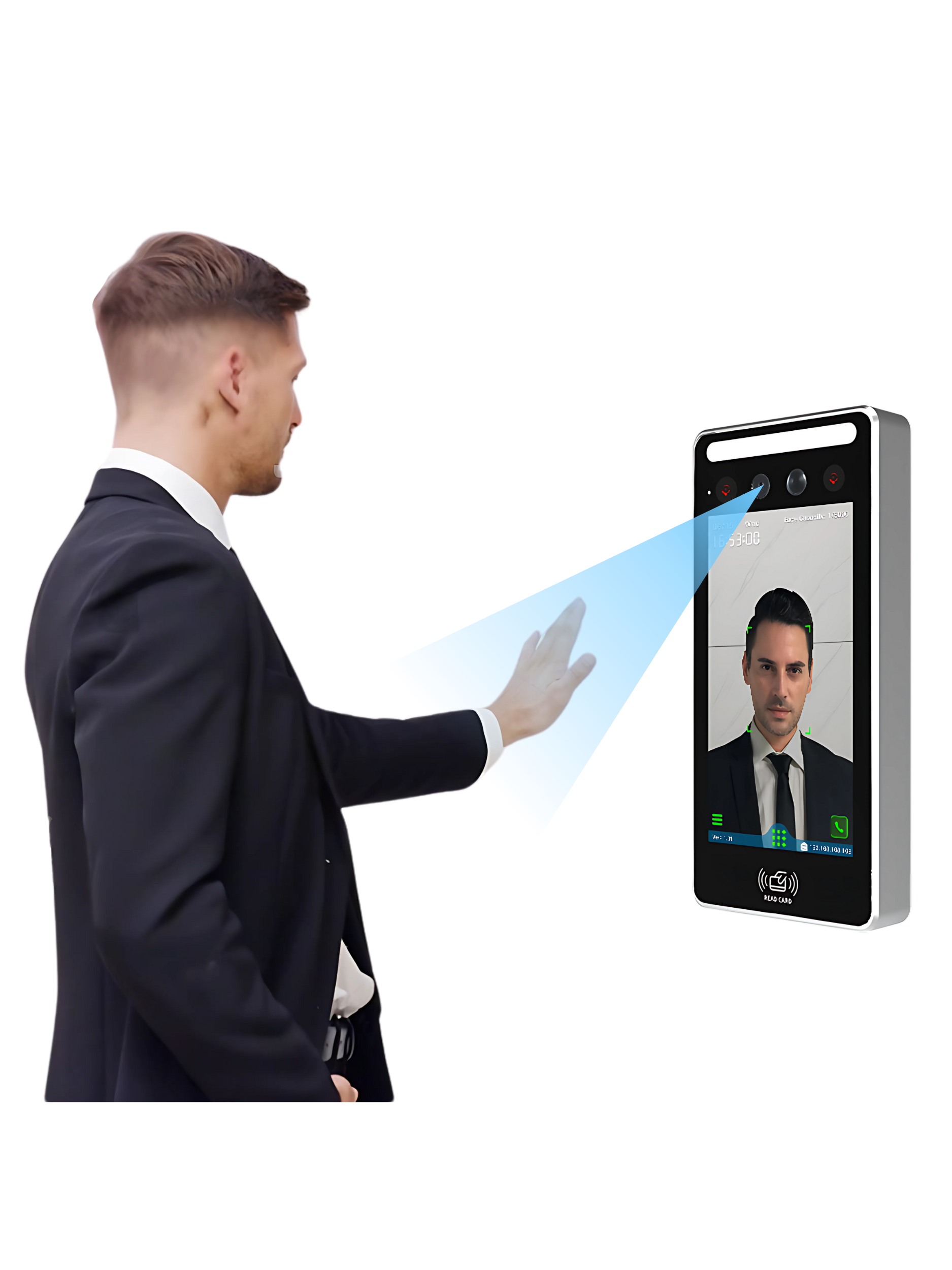

  • Touchless, secure palm vein access with live body detection

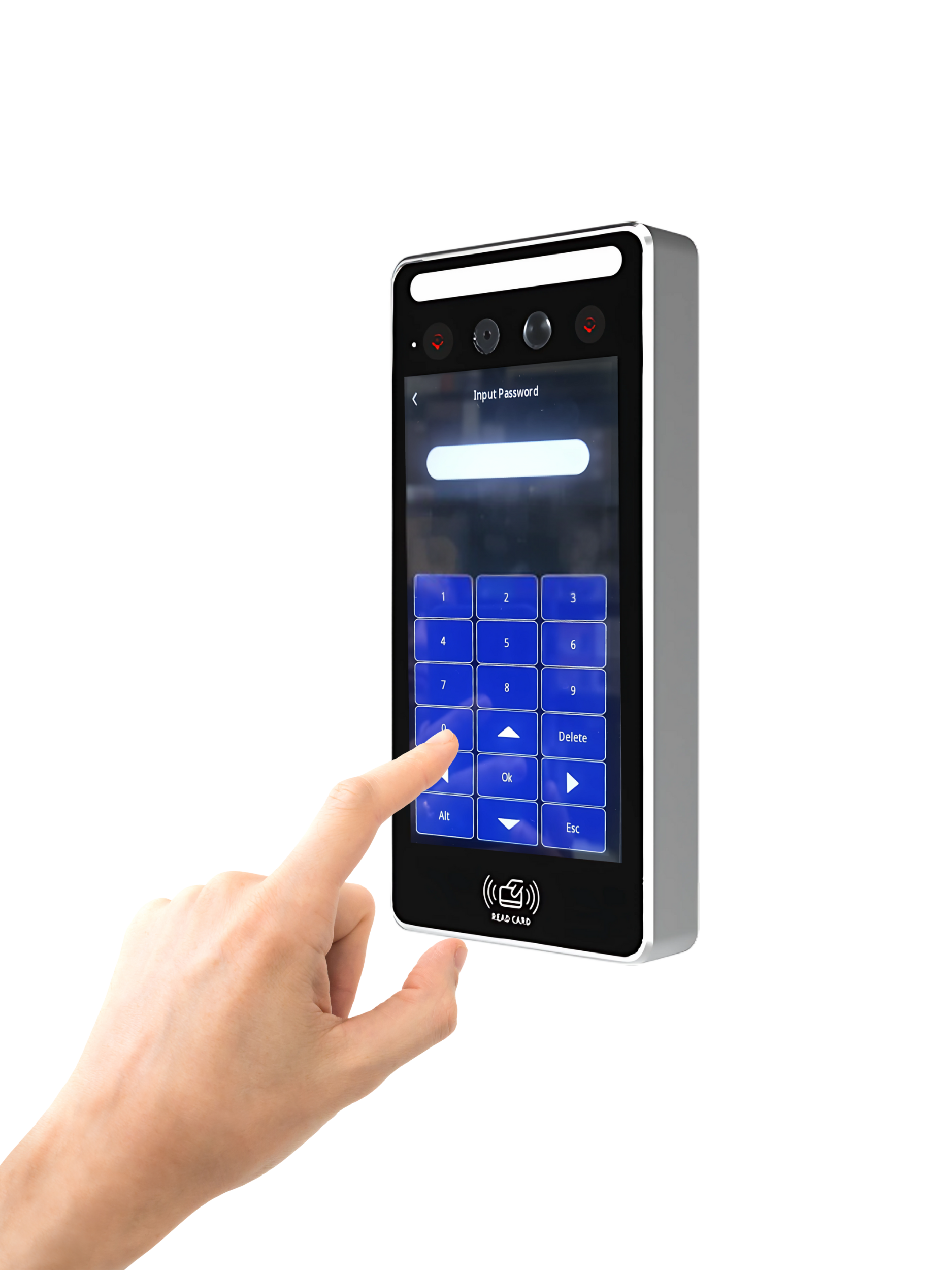

  • 5-inch HD touchscreen for user-friendly interaction
  • Cloud and local access management with mobile app support
  • Rugged build with metal and tempered glass for heavy use
  • Supports TCP/IP, RS485, Wi-Fi, and optional 4G
  • Video intercom functionality for enhanced communication

  • Description
  • Specifications
  • Download
  • Videos

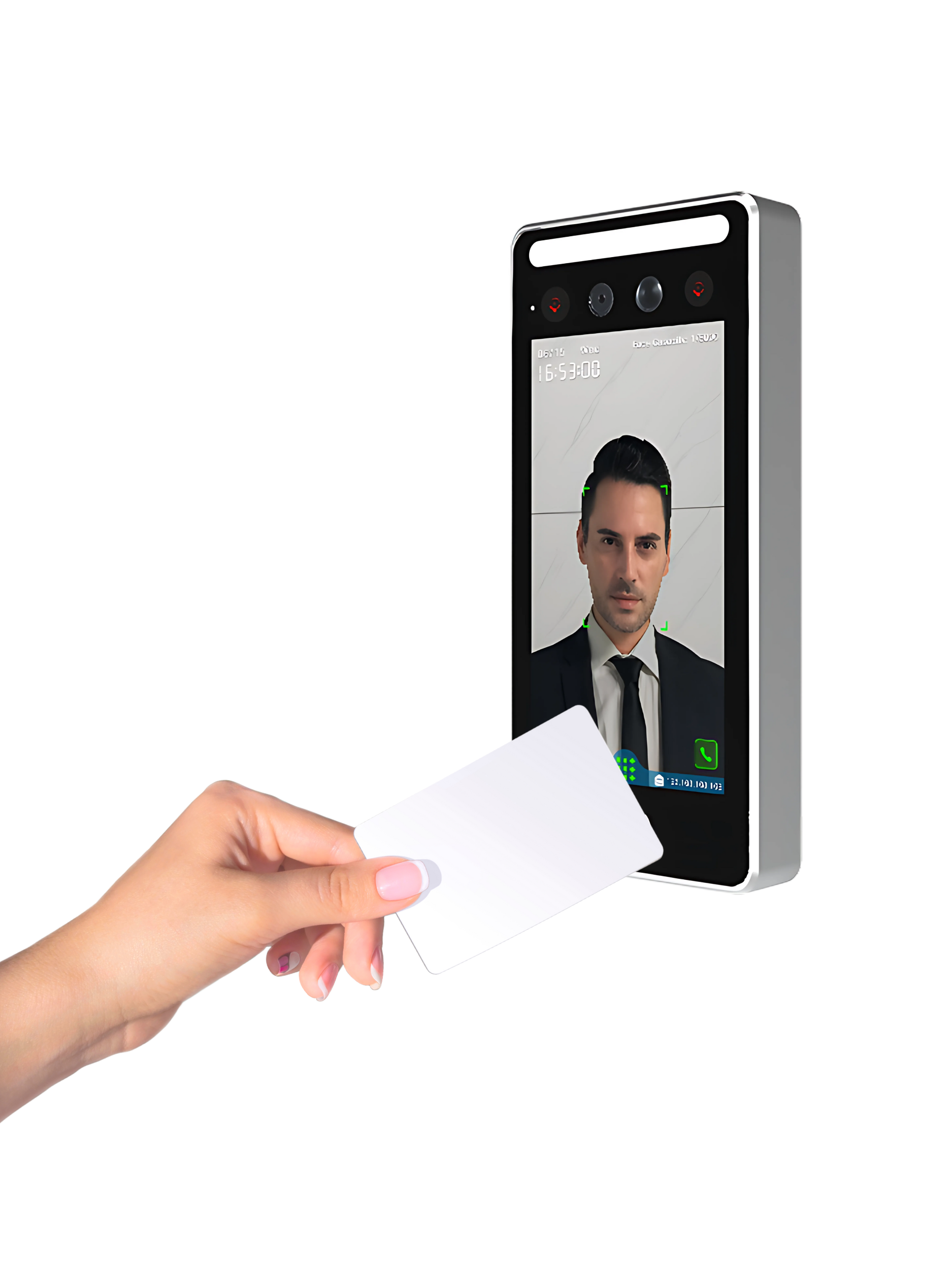

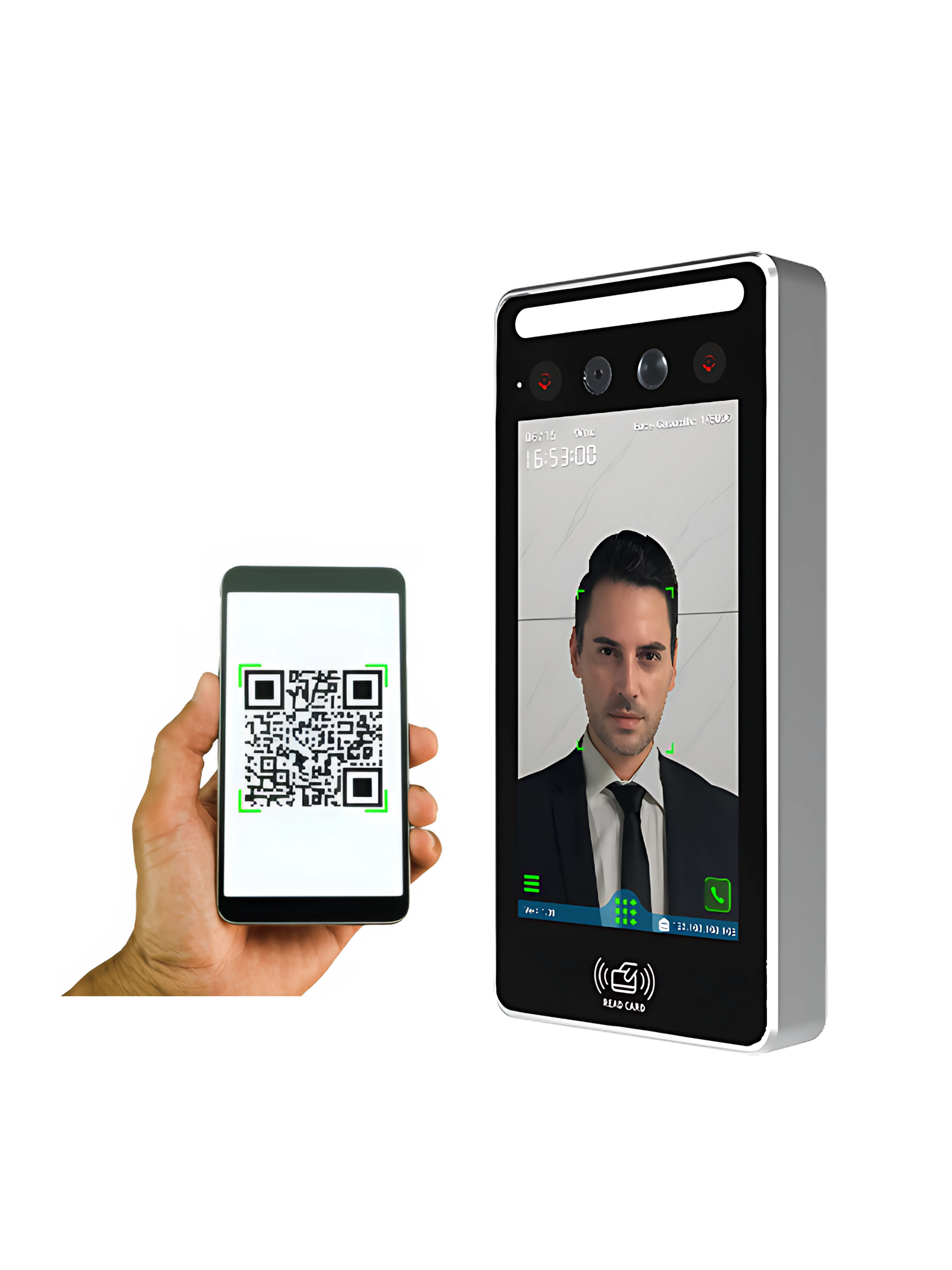

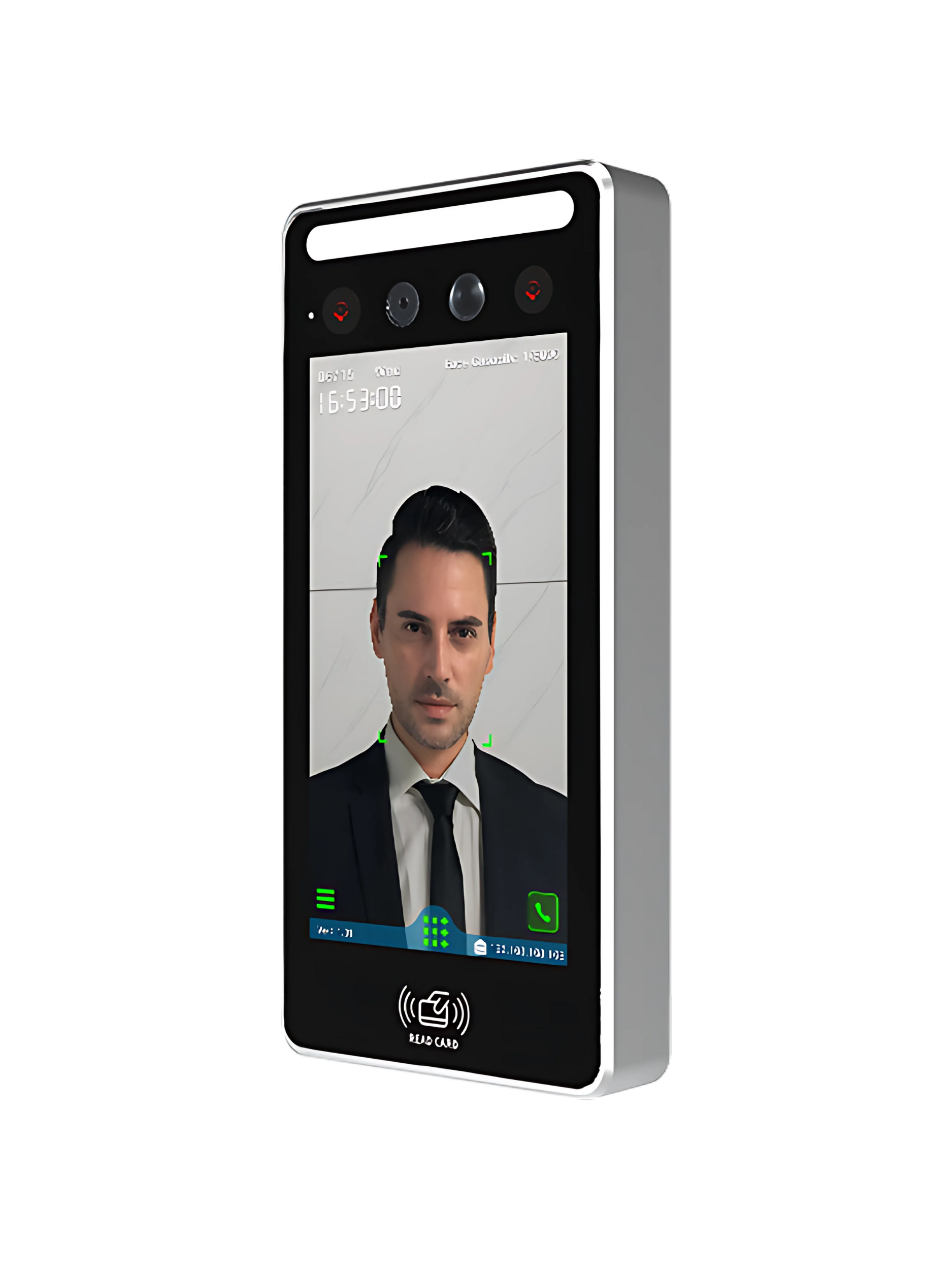

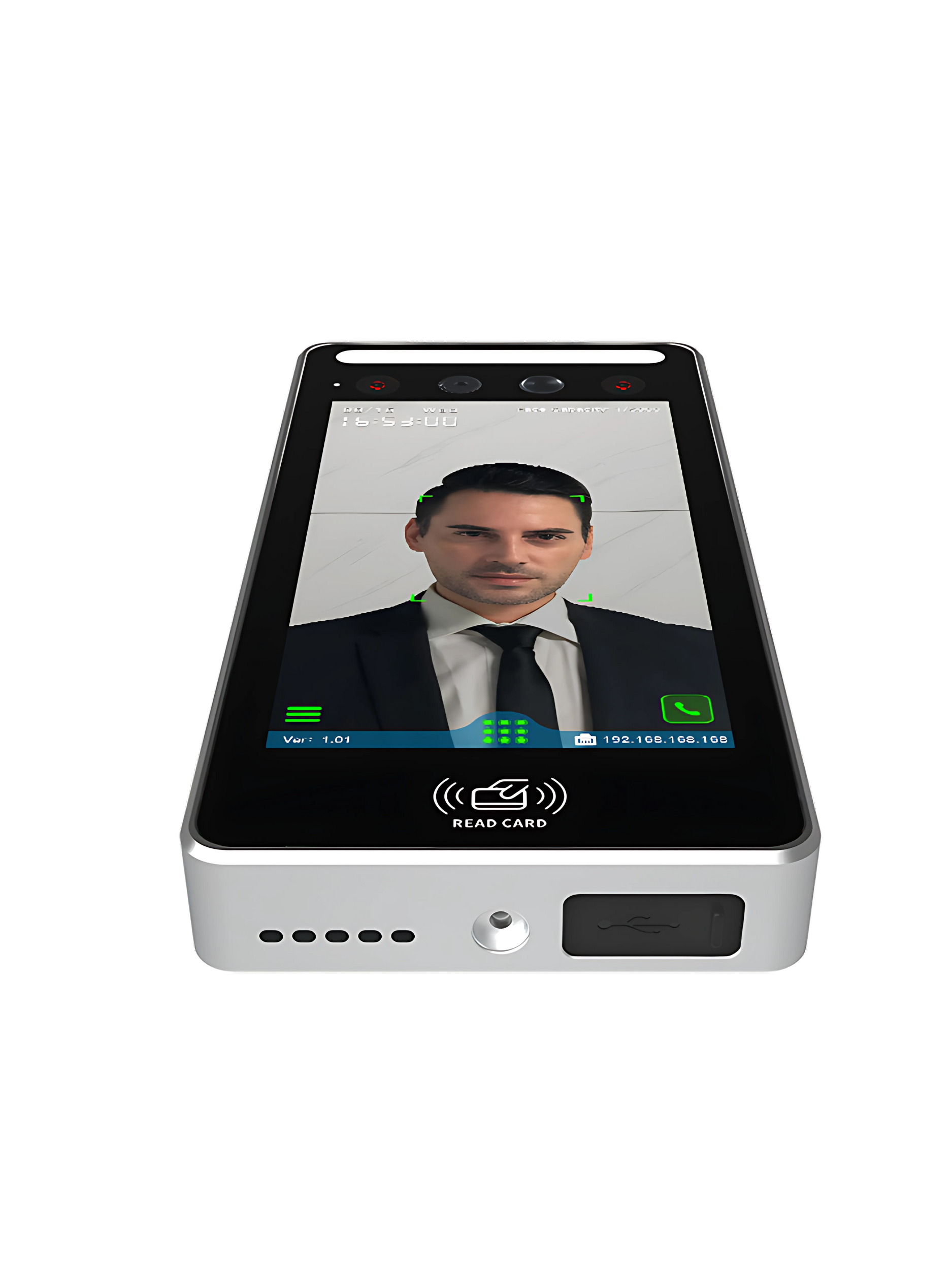

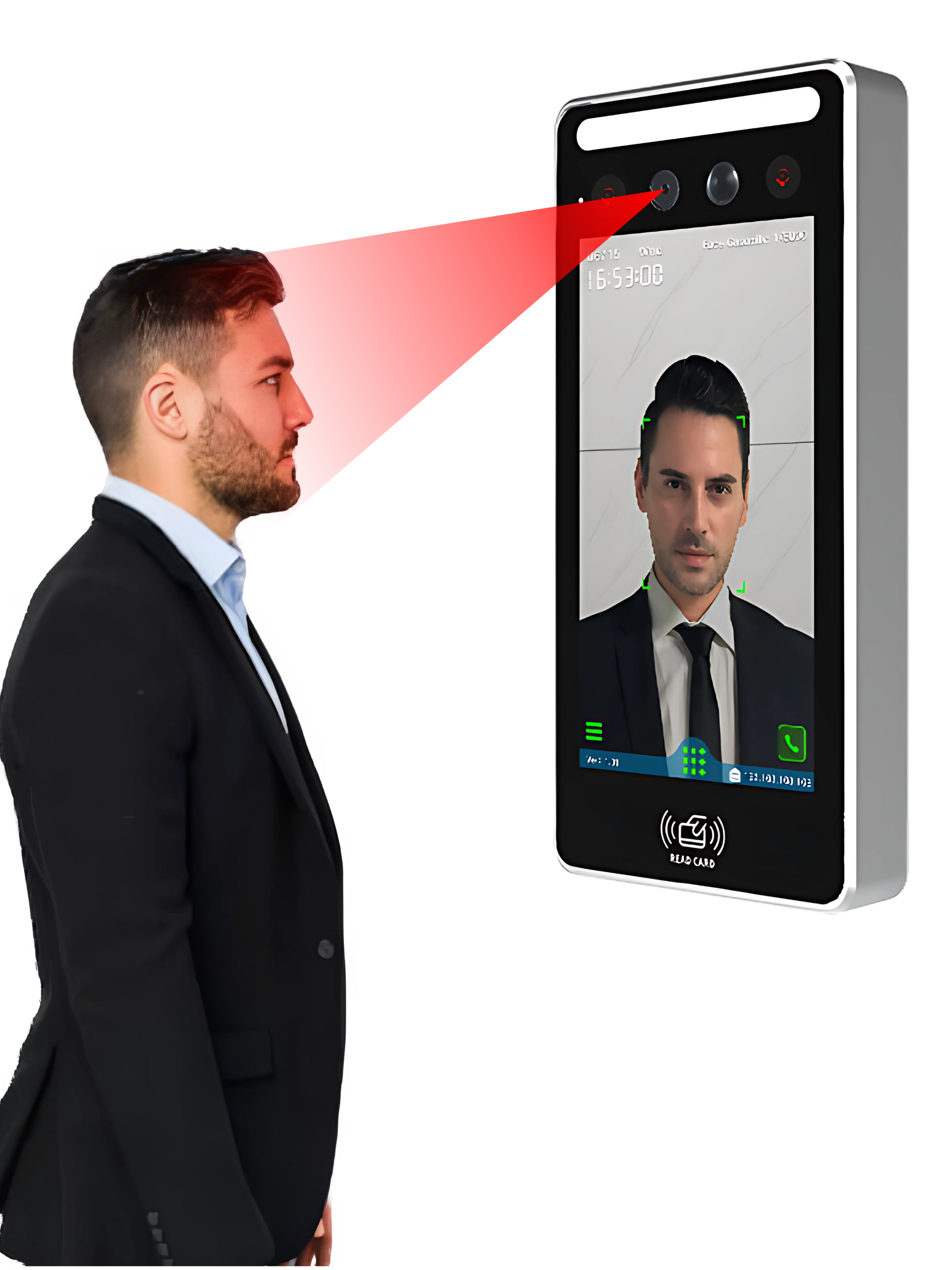

The OX-945 AI Face Recognition & Cloud-Based Access Control Terminal is an advanced biometric system designed to provide high-speed, multi-factor authentication and comprehensive access control for modern workplaces and secure environments. It supports a wide range of identification methods, including AI-based facial recognition, palm vein scanning, RFID/NFC cards, QR codes, and PIN codes, enabling flexible and hygienic, contactless access.

With a capacity for up to 20,000 face templates, 10,000 palm vein records, and 1 million access logs, the OX-945 is engineered for high-volume, enterprise-level applications. It features live body detection and anti-spoofing technology to ensure accurate verification and prevent fraudulent access.

The terminal integrates seamlessly with cloud and web-based software platforms, offering robust features like real-time attendance tracking, shift scheduling, payroll management, visitor control, and document expiry alerts. Notifications can be sent via email, WhatsApp, or SMS, and users can interact with the system through a responsive 5-inch HD touchscreen and mobile app support.

Built with a metal and tempered glass body, and designed to withstand harsh conditions from -30°C to 65°C, the OX-945 is suited for both indoor and outdoor use. It supports versatile connectivity options including TCP/IP, Wi-Fi, RS485, RS232, and optional 4G, making it a powerful, all-in-one solution for secure and scalable access control.
Attribute Value
Model OX-945
Authentication Methods Face, Palm Vein, QR Code, RFID, NFC, PIN
Face Capacity 20,000
Palm Vein Capacity 10,000
Record Capacity 1,000,000
Display 5" HD Touchscreen
Connectivity TCP/IP, Wi-Fi, RS485, RS232, 4G (optional)
Communication Features Video Intercom, Event Snapshots
Protection Features Anti-spoofing, Live body detection, HTTPS (opt)
Power Supply 12V DC, <1300mA
Operating Temp -30°C to 65°C
Dimensions 180 × 87 × 23 mm
Weight 0.6 kg
Installation Wall-mounted or turnstile
File Icon OX-945 - Data Sheet File size: 3.13 MB Last updated: 06 May 2025 Download
