XG-C504

Fixed-temperature heat detector with alarm threshold at 57°C
Ideal for dusty, smoky, or heat-prone environments like kitchens and warehouses
Compatible with both 2-wire and 4-wire fire alarm systems
Wide voltage support: DC 9V–35V for system flexibility
Low standby current: ≤50μA (2-wire & 4-wire NO), ≤16mA (4-wire NC)
Flame-retardant ABS housing ensures long-term durability
EN54-5:2008 and CE certified for international compliance
Red LED indicator for clear alarm visualization

inquiry now

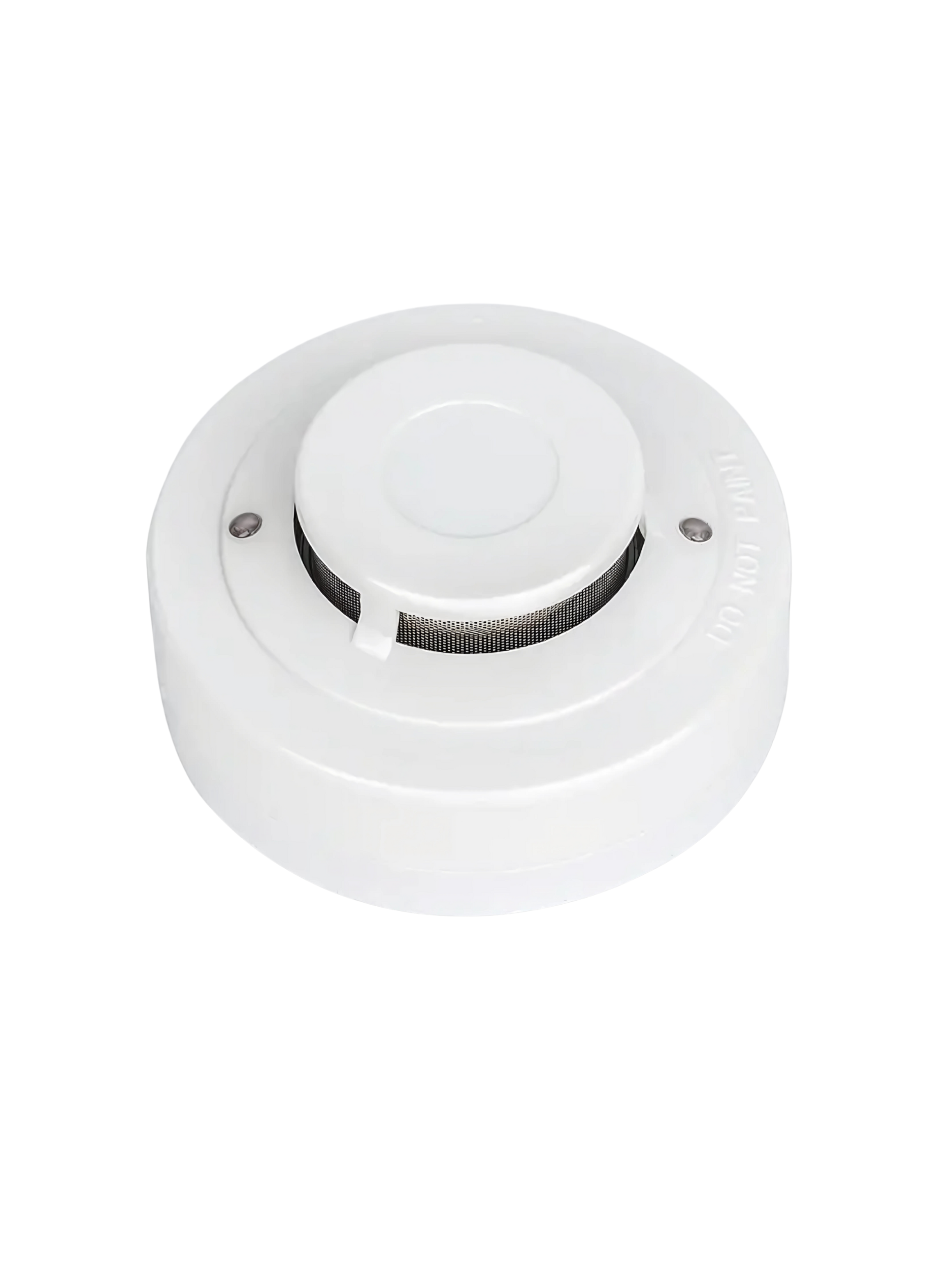

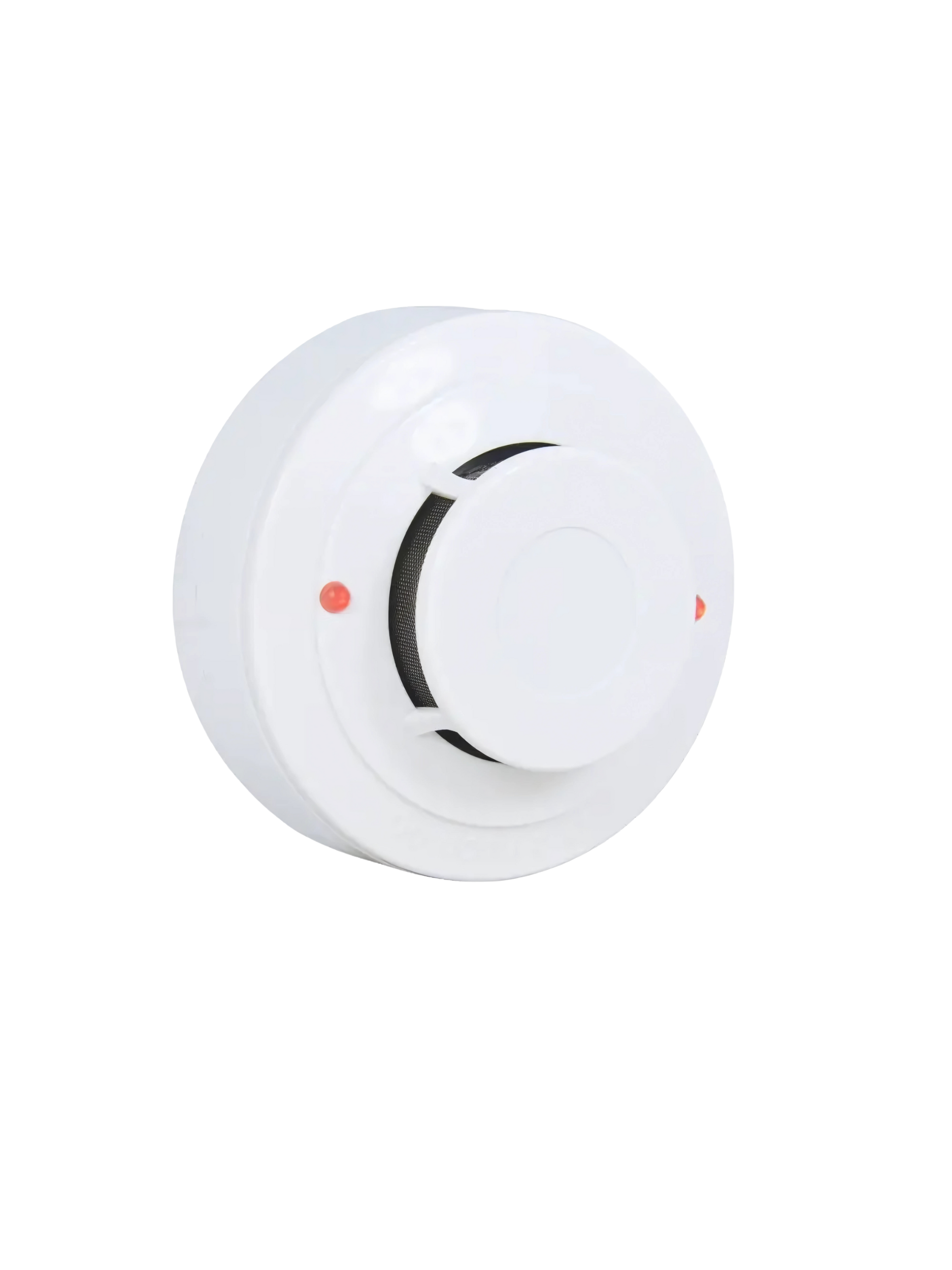

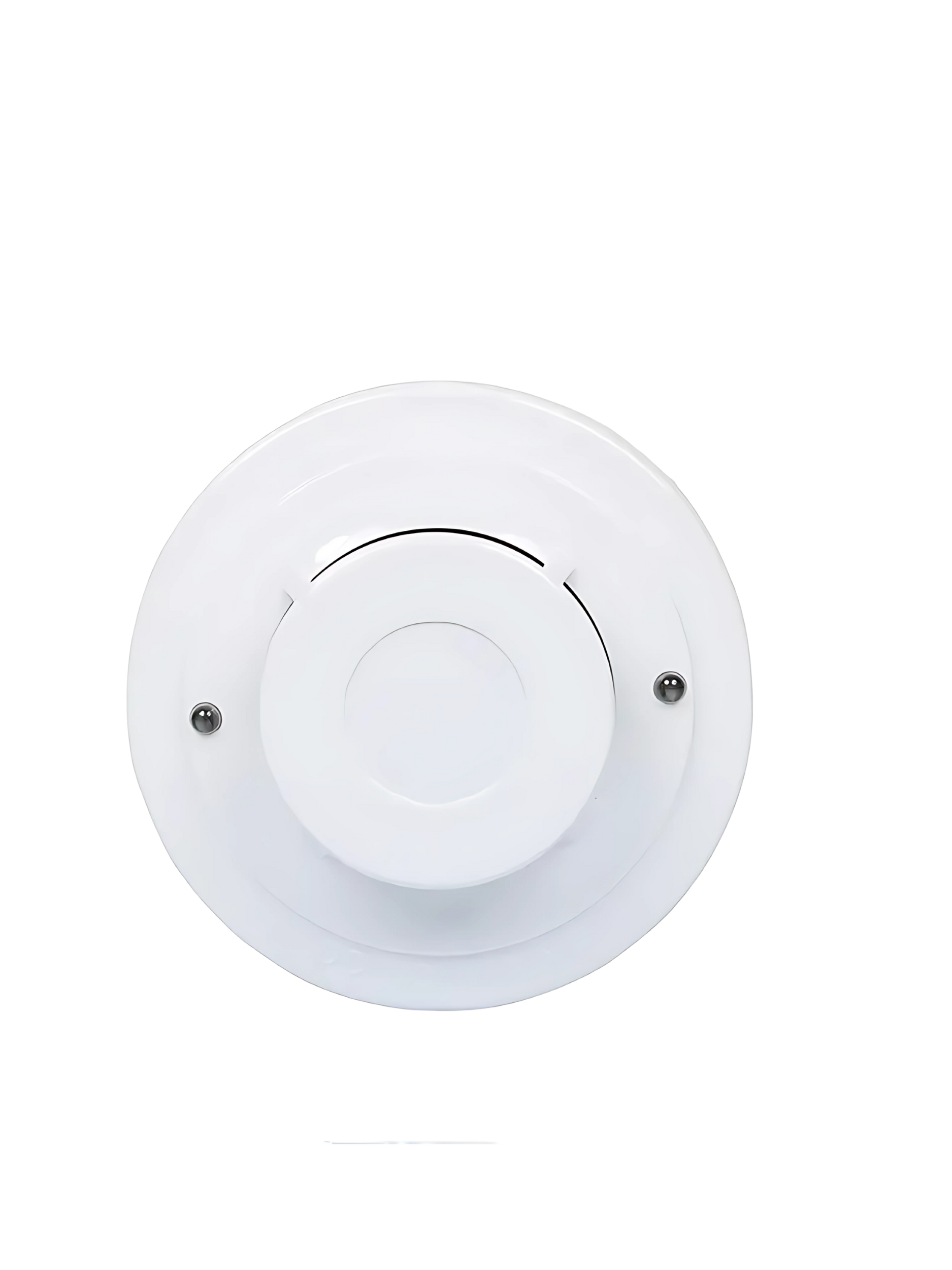

The XG-C504 Wired Heat Detector is a high-performance, fixed-temperature sensing device specifically designed for environments where smoke detection is impractical, such as kitchens, garages, mechanical rooms, and industrial areas.

Triggering at 57°C, this unit ensures timely and accurate fire detection in heat-intensive or dusty conditions. The detector supports both 2-wire and 4-wire wiring systems and operates within a broad voltage range (DC 9V–35V) for installation flexibility.

With a standby current as low as ≤50μA, the XG-C504 offers long-term energy efficiency, and its red LED alarm indicator provides clear visual notification. Constructed from flame-retardant ABS, it is durable and compliant with EN54-5:2008 and CE safety standards.

The XG-C504 is a reliable, low-maintenance solution for fire protection in challenging operational settings.

Attribute	Value
Model	The XG-C504 Wired Heat Detector is a high-performance, fixed-temperature sensing device specifically designed for environments where smoke detection is impractical, such as kitchens, garages, mechanical rooms, and industrial areas. Triggering at 57°C, th
Type	Wired Fixed-Temperature Heat Detector
Trip Temperature	57°C
Operating Voltage	Operating Voltage
Standby Current	2-wire: ≤50μA; 4-wire: ≤50μA (NO) / ≤16mA (NC)
Alarm Current	2-wire: 20–25mA @12V / 40–50mA @24V; 4-wire: ≤40mA (NO) / ≤20mA (NC)
Alarm Indicator	Red LED
Material	Flame-retardant ABS
Dimensions	∅99 × H43.5 mm
Operating Temperature	-10°C to +50°C
Operating Humidity	≤95% RH (non-condensing)
Wiring Options	2-wire or 4-wire
Certifications	EN54-5:2008, CE Certified
Application	Kitchens, garages, workshops, boiler rooms, warehouses

XG-C504 - Data Sheet

File size: 963.35 KB

Last updated: 05 May 2025 Download
