XG-C507

  • Resettable manual fire call point for fast emergency activation
  • No need for glass replacement — simple push-to-activate and reset design
  • Operates at DC 24V with high current handling (up to 1A)
  • Ultra-low contact resistance (≤0.2Ω) for quick, reliable signal transmission
  • Flame-retardant ABS enclosure for high durability
  • Available in red, yellow, and green color options
  • Compact dimensions: 87 × 87 × 51 mm for easy wall mounting
  • Ideal for commercial complexes, schools, hospitals, industrial facilities

  • Description
  • Specifications
  • Download
  • Videos

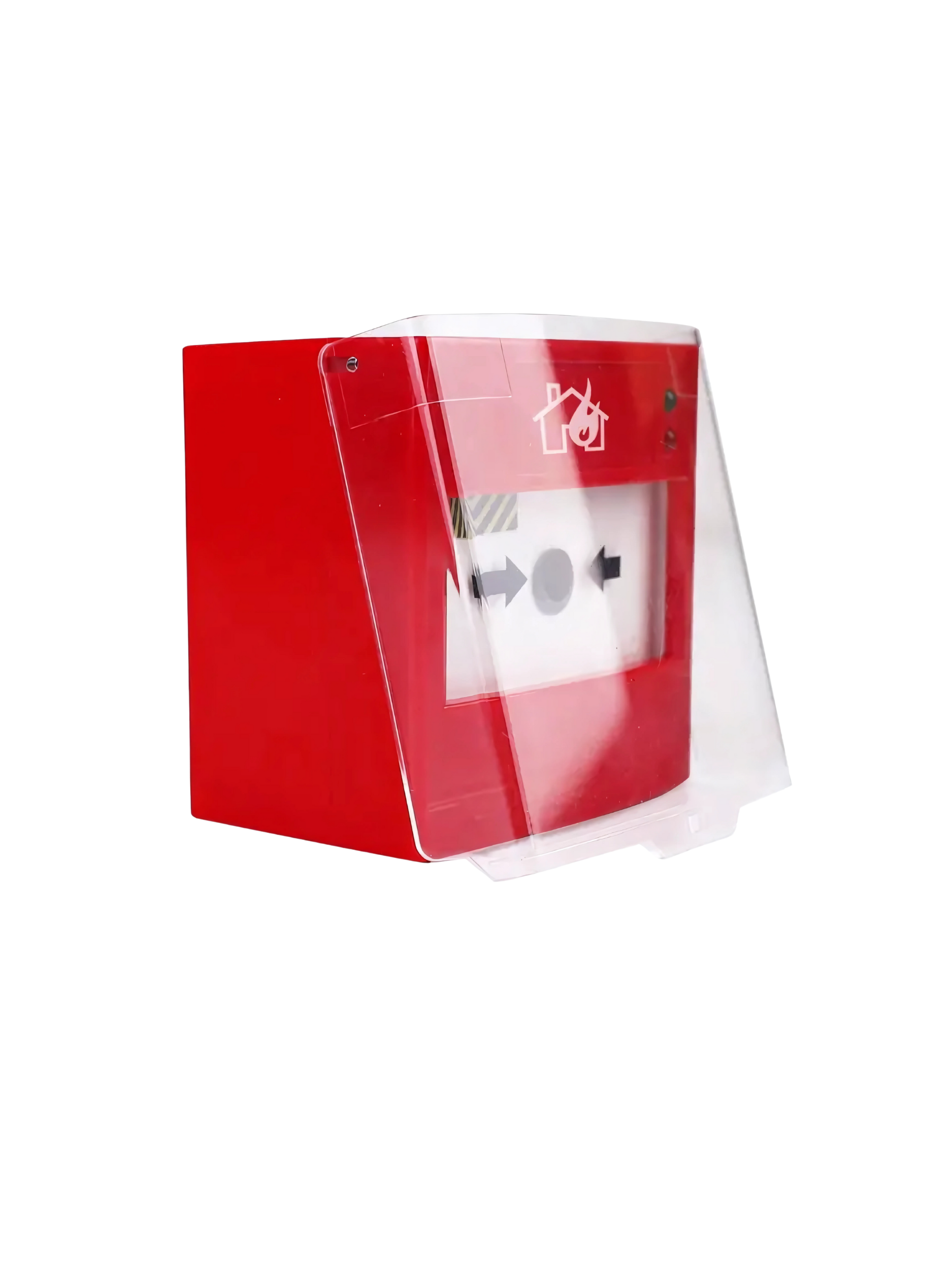

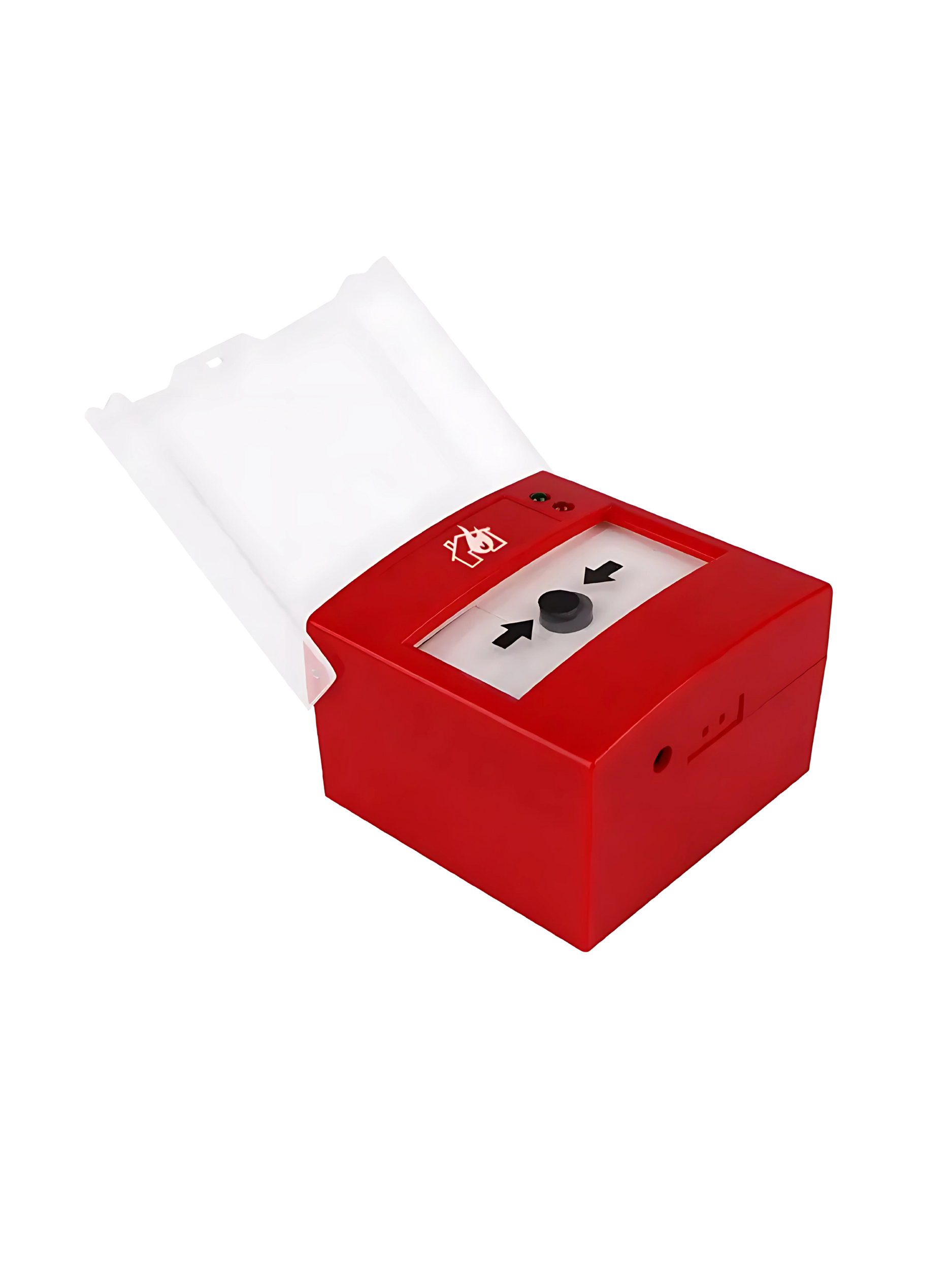

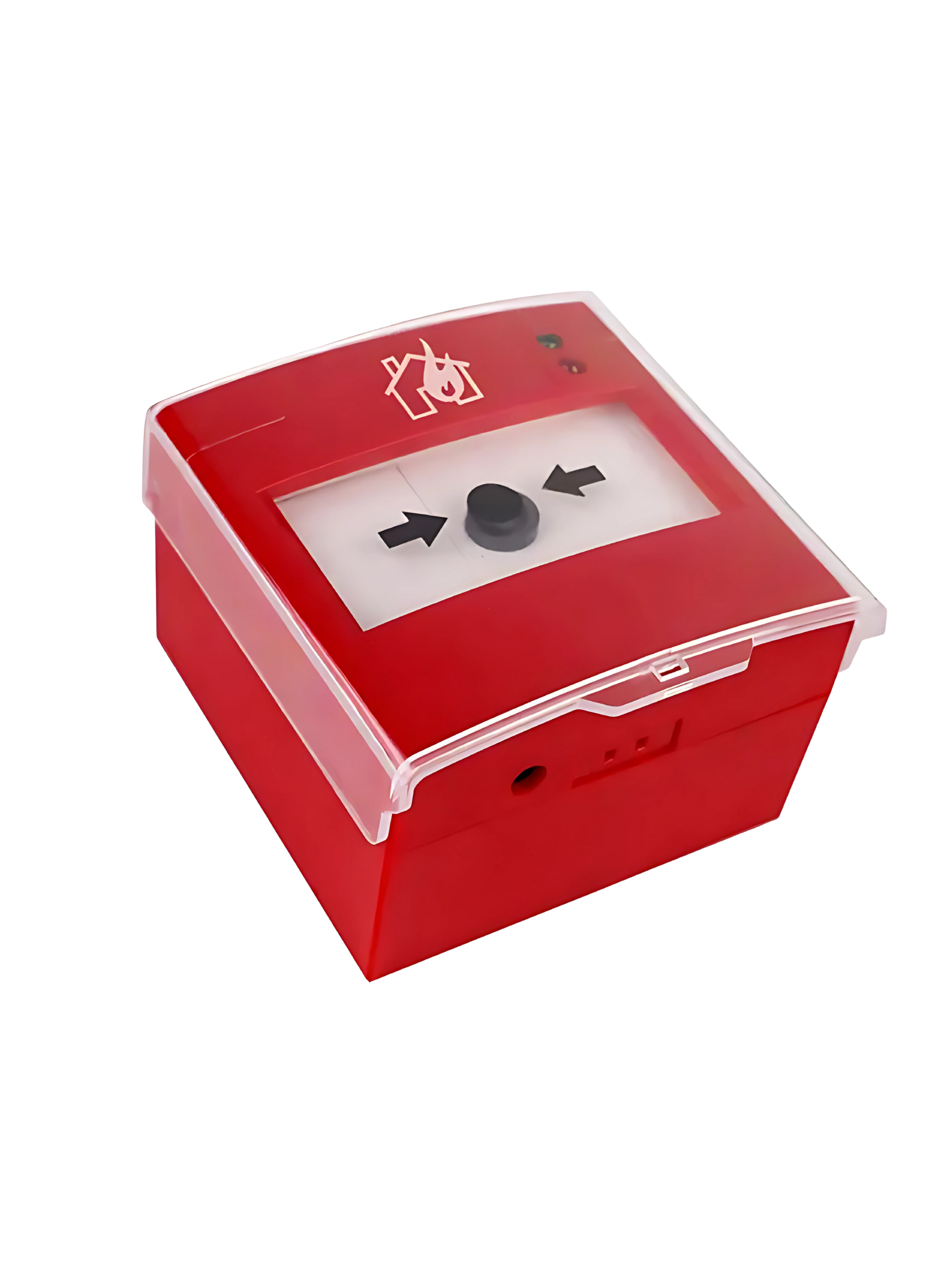

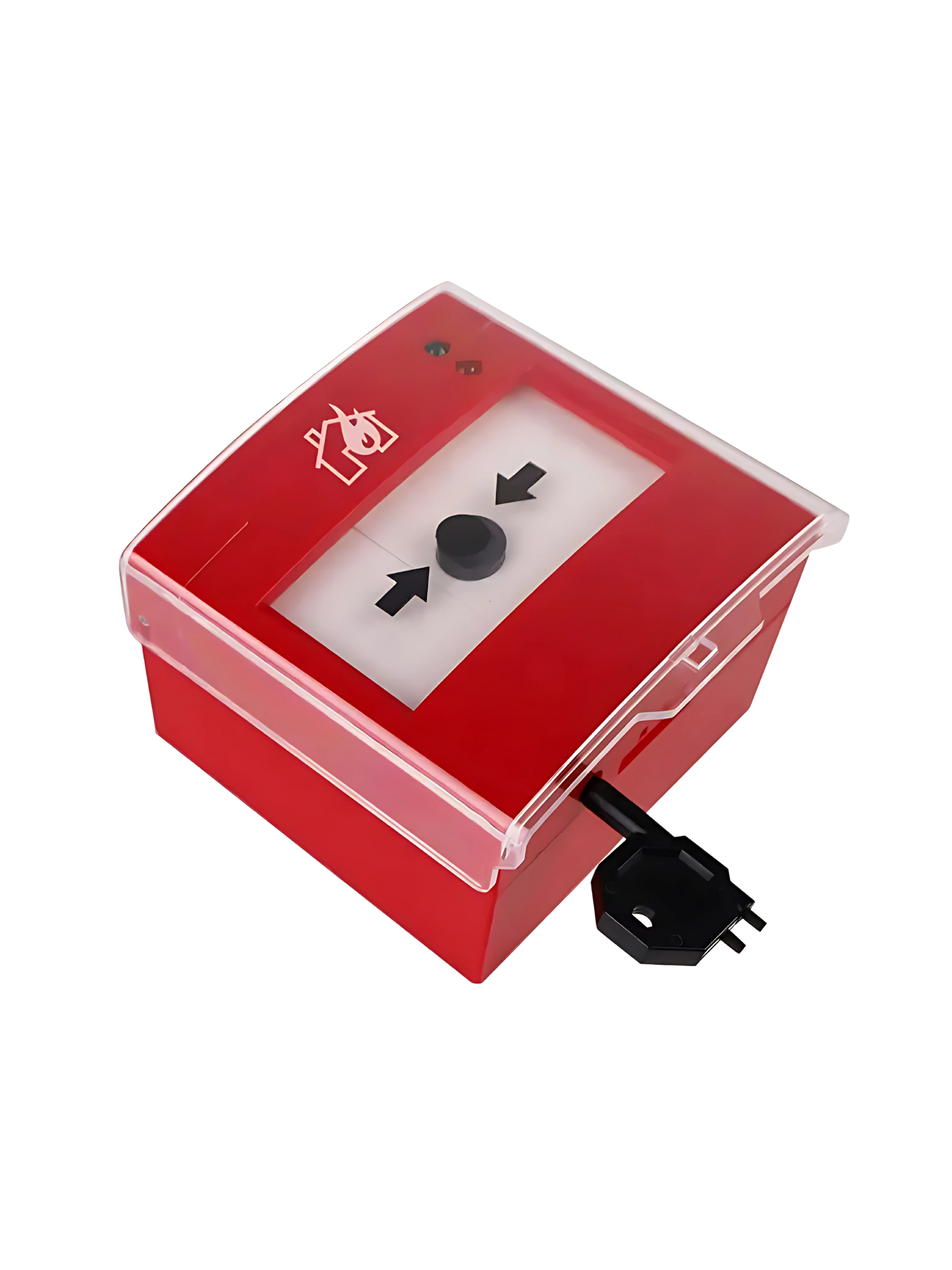

The XG-C507 Resettable Manual Call Point is a user-friendly, highly durable emergency device engineered to provide quick manual alarm activation without the maintenance issues associated with traditional break-glass units.

Featuring a resettable push panel, the XG-C507 allows immediate reuse after an alarm is triggered, making it ideal for frequent drills and high-reliability systems. With a low contact resistance (≤0.2Ω) and the ability to handle up to 1A at 24V DC, it ensures fast, secure alarm signal transmission.

Built from flame-retardant ABS and available in red, yellow, or green, the XG-C507 is designed for high-visibility and robust performance in commercial complexes, schools, hospitals, and industrial sites.

Its compact size (87 × 87 × 51 mm) makes it easy to install and service, providing a reliable and maintenance-friendly manual fire alarm solution.
Attribute Value
Model XG-C507
Type Resettable Manual Call Point
Operating Voltage DC 24V
Maximum Current Handling 1A @ 24V DC
Contact Resistance ≤0.2Ω
Material Flame-retardant ABS
Color Options Red, Yellow, Green
Dimensions L87 × W87 × H51 mm
Operating Temperature -10°C to +65°C
Operating Humidity ≤90% RH (non-condensing)
Application Commercial buildings, schools, healthcare facilities, industrial areas
File Icon XG-C507 - Data Sheet File size: 3.23 MB Last updated: 05 May 2025 Download
