Accessories

XG-HD020

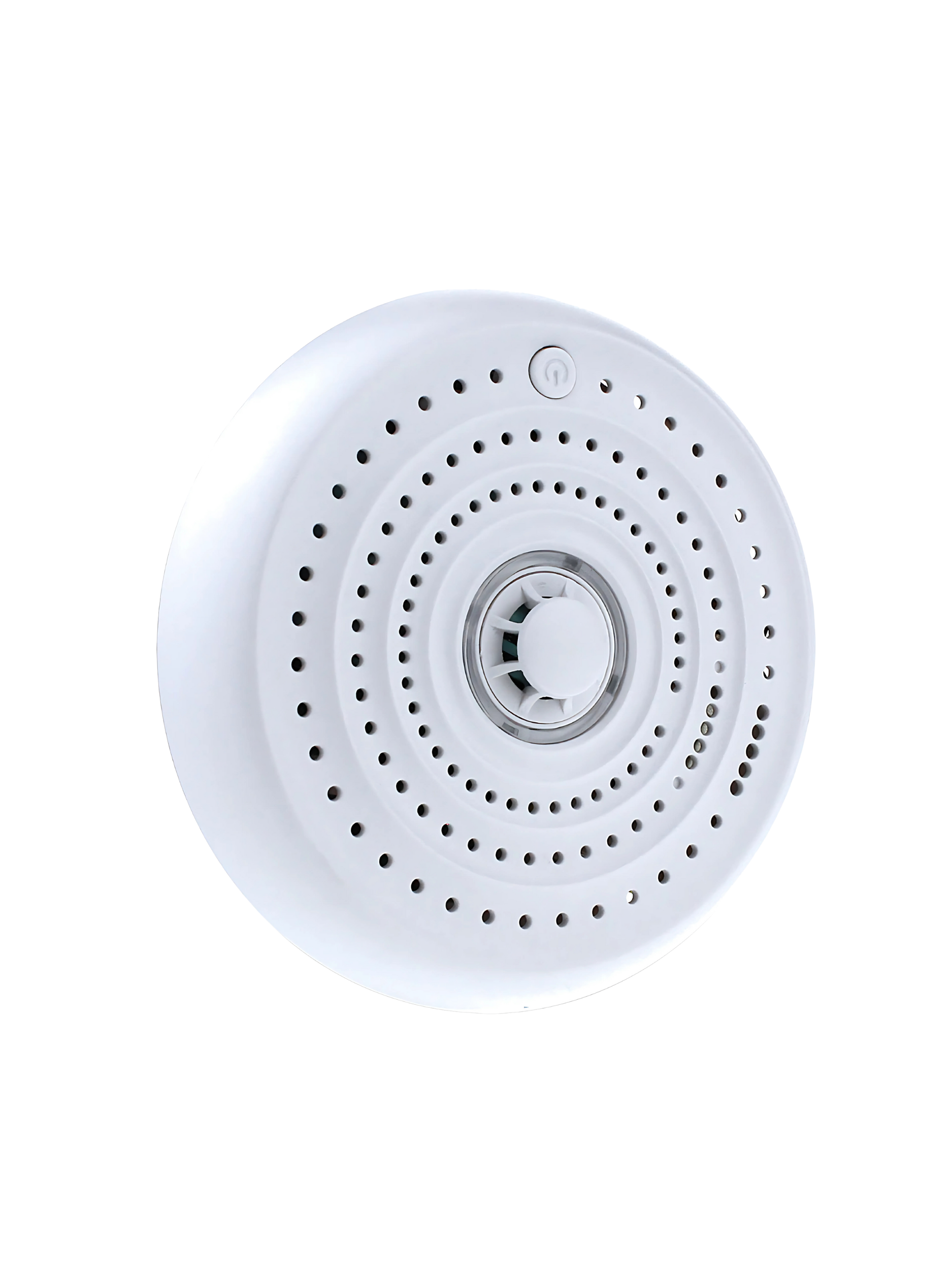

  • Wireless heat detector designed for fire detection in smoke-sensitive areas
  • Detects rapid temperature rise instead of smoke particles
  • Built-in non-replaceable 3V battery with 10-year lifespan
  • Dual alert system: loud buzzer and bright LED indicator
  • 433MHz wireless communication using eV1527 protocol
  • Low battery notification at 2.7V threshold
  • Certified to BS5446-2 fire safety standard
  • Ideal for kitchens, garages, utility rooms, and commercial food prep areas

  • Description
  • Specifications
  • Download
  • Videos
The XG-HD020 Wireless Heat Detector is a highly reliable fire detection solution engineered for environments where traditional smoke alarms might trigger false positives — such as kitchens, garages, or high-dust areas. Instead of detecting smoke, it identifies rapid temperature rises, ensuring accurate fire risk warnings without unnecessary alarms. Built according to the BS5446-2 fire safety standard, the XG-HD020 provides trusted protection for both residential and commercial spaces. Equipped with a loud buzzer and bright LED indicator, it guarantees clear alerting even in noisy environments. The device is powered by a built-in non-replaceable 3V battery, delivering 10 years of maintenance-free operation and sending a low battery alert when reaching 2.7V. Operating over 433MHz wireless frequency, it integrates easily into existing alarm systems using the eV1527 protocol, making it a robust, smart choice for heat-based fire detection.
Attribute Value
Model XG-HD020
Type Wireless Heat Detector
Wireless Frequency 433MHz (eV1527 protocol)
Battery Built-in 3V (non-replaceable)
Battery Life 10 years
Standby Current <10μA
Alarm Current <60mA
Alarm Mode LED + Buzzer
Low Battery Alarm 2.7V threshold
Certified Standard BS5446-2
Application Kitchens, garages, utility rooms, commercial prep areas
Data Sheet Last updated: 26 Apr 2025 Download
