Accessories

XG-DS021

  • Wireless door/window sensor with ultra-low standby power (1μA)
  • Magnetic trigger system detects opening and closing precisely
  • Communicates using 433MHz (eV1527 protocol)
  • Compact two-piece design for discreet and easy installation
  • Built-in low battery alert for continuous operation
  • Powered by a single CR2032 coin cell battery
  • Ideal for homes, offices, and retail entry monitoring
  • Reliable operation from -10°C to +50°C, <95% RH humidity

  • Description
  • Specifications
  • Download
  • Videos

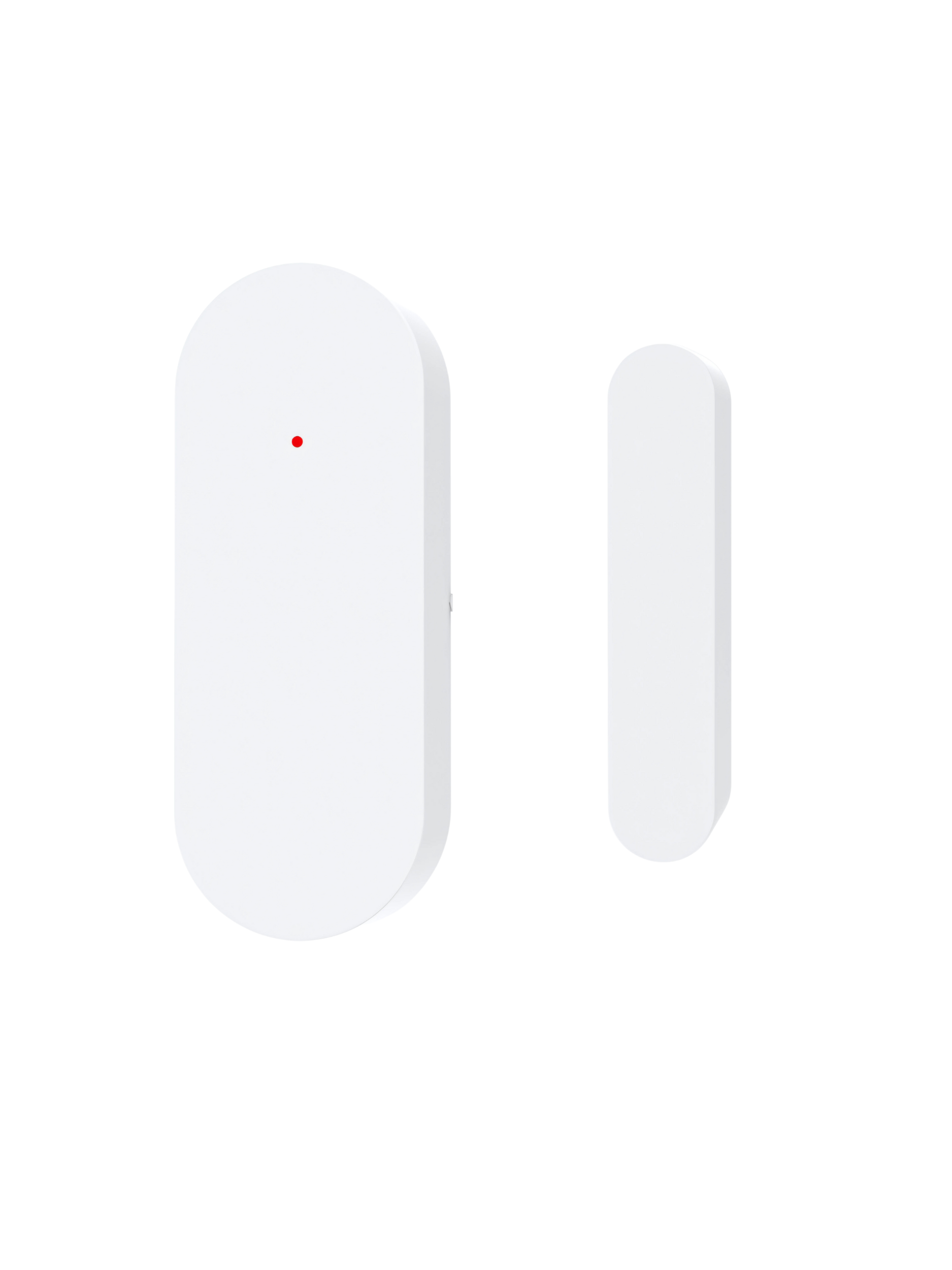

The XG-DS021 Wireless Entry Sensor is a sleek, energy-efficient security device designed to reliably monitor the opening and closing of doors, windows, and cabinets. With ultra-low standby power consumption of just 1μA, it is perfectly optimized for long-term, maintenance-free operation. Operating on the 433MHz frequency (eV1527 protocol), the XG-DS021 ensures stable wireless communication with compatible alarm systems. The two-piece magnetic trigger system offers accurate detection of entry events, sending immediate alerts to security panels or mobile apps. Its compact size and minimal footprint allow for discreet installation without disrupting the aesthetics of homes, offices, or retail spaces. Powered by a single CR2032 battery, the sensor also includes a low battery alert feature to ensure continuous monitoring. Overall, the XG-DS021 is a durable, discreet, and energy-saving solution for enhancing door and window security across various indoor environments.
Attribute Value
Model XG-DS021
Type Wireless Entry Sensor
Wireless Frequency 433MHz (eV1527 protocol)
Battery 1 × CR2032 coin cell
Standby Current 1μA
Alarm Current 20mA
Detection Method Magnetic contact trigger
Operating Temperature -10°C to +50°C
Humidity Range <95% RH (non-condensing)
Large Part Dimensions 65 × 25 × 13 mm
Small Part Dimensions 52 × 11.4 × 13 mm
Application Doors, windows, cabinets (homes, offices, retail)
Data Sheet Last updated: 26 Apr 2025 Download
